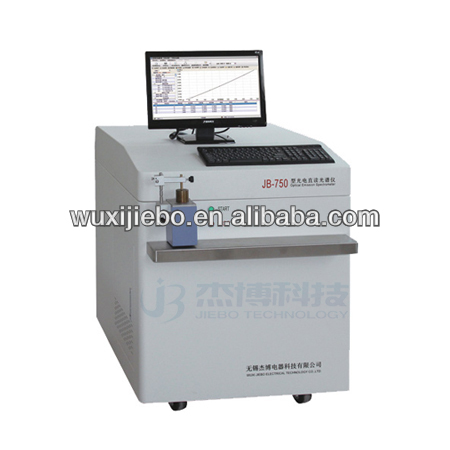

JB-750 Type High-performance Optical Emission Spectrometry


 JB-750 Type High-performance Optical Emission Spectrometry





Quick Details
Place of Origin: Jiangsu China (Mainland) Brand Name: JIEBO Model Number: JB-750
analysis range of spectrometer: 130-800nm Partial constant temperature: 30℃±0.1℃ usage: widely,such as quality control...




Specifications
Analysis of the scope of band: 130-800nm
Partial constant temperature 30 Celsius degree
PMT pressure adjustment program.
Our company produces JB-750 Type High-performance Optical Emission Spectrometer to guests all over the world.

Wuxi Jiebo Electrical Technology Co.,Ltd, is a manufacturer on analysis instruments, we have a good feedback and enjoy the reputation from our customers overseas. Most important, our company stricly proceed the complete after-sales Service to our clients.

Application area
This apparatus is widely used in material analysis of various industries, such as iron and steel, non-ferrous metal, metallurgy, machinery, chemical equipment, quality inspection system and so on. It is also used in blast furnace analysis, routine identification and analysis in metallic smelt industry.
1,Manage blast furnace process control by various processes of blast furnace celerity analysis.
2,Identification of product specifications.
3,Material checking and acceptance.
4,Quality inspection.

Allocating and analyzing channel and quantitative work scale
Major Features
1,The human oriented design, the standardized and modularized manufacture make the apparatus smaller.
2,The core components are all imported, which strengthen the stability and reliability of the apparatus.
3¡¢We adopt the advanced foreign technologies of excitation source and design the excitation source of high energy, high stability by our own to fulfill the needs of ultrahigh content and trace analysis.
4,It adopts overall exit slit using technology which is convenient for choosing passage and regulating.
5,The high voltage of the PHT in the apparatus is controlled directly by computer and regulated by software, which improved efficiency of the passage.
6,In the apparatus, there is an automatic constant temperature system which solve the problem of bad effects to the optics system caused by changing temperature.
7,The multi-language operation software and flexible configuration enable the apparatus more humanistic.
8,This apparatus can analyze various kinds of matrix, such as Fe, Co, Ni, Ti, Cu, Al, Pb, Mg, Zn and Sn.

The configuration of the product
Direct Reading Spectrometer
Main Parameters
Excitation light source:
Supply voltage: 50Hz, 220V ± 1%
Input power: 1.0KVA
Charging capacitor: pre-combustion 8μF, exposure 1.5μF
Peak Current: pre-combustion 100A, exposure 20A
The main circuit peak pressure: 300VDC (with automatic adjustment of peak pressure)
Ignition circuit: pulse amplitude: +15 KV
Auxiliary gap: Using Tunnel Diode
Discharge frequency: 200 Hz ~ 600 Hz
Sample sets of gap: 4mm

Spectrometer:
Analysis band range: 160 ~ 650nm
Machine engraved concave grating: Curvature radius of 750mm
Depicts the density: 1667/mm
Incidence angle: 35 degrees
Allows a maximum of channels: 40 (expandable to 64 channels)
Spectrometer Local temperature: 35 °C ± 0.5 °C

Spare parts:
NO.
Name
Specification
Qty.
Unit
1
Protective tube
φ6.5×45  10A
2
Pcs.
2
Tungsten electrode
Diameter 4mm
1
Pcs.
3
Polar distance gauge
4.0mm
1
Set
4
Light source ,controlling panel

1
Block
5
Specimen

1
Block
6
Operating application software CD
CD
1
Pcs.
7
Printing paper

1
Pcs.
9
Tool assembly

1
Set
10
Apparatus operating manual

1
Pcs.

If u have any question, plz feel free to contact me!

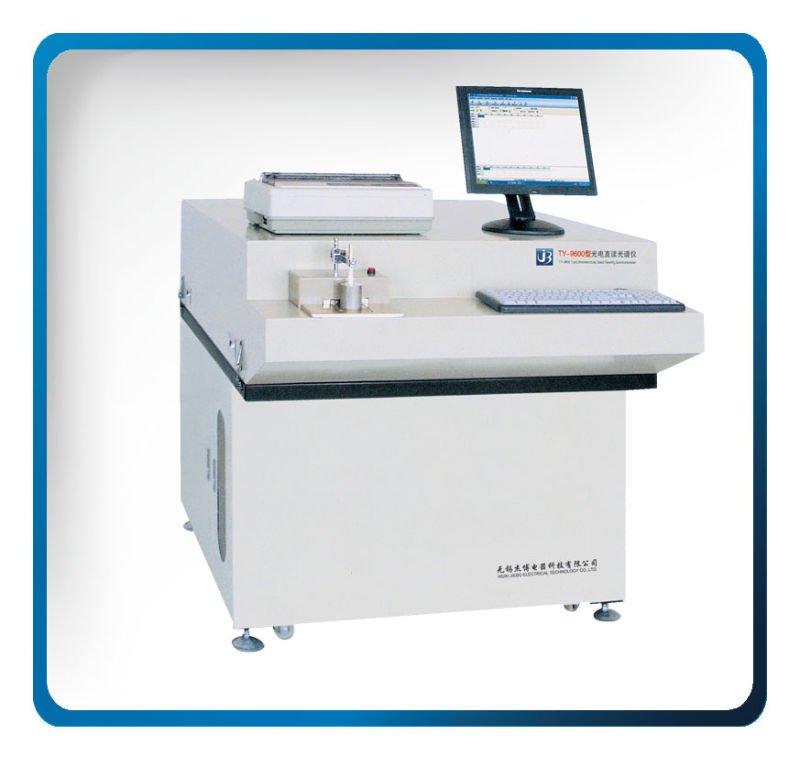

9600IMG_00342
All the standard accessories can mactch with LECO instruments.
