Sunday, 26 February 2012

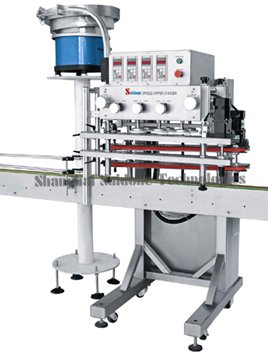

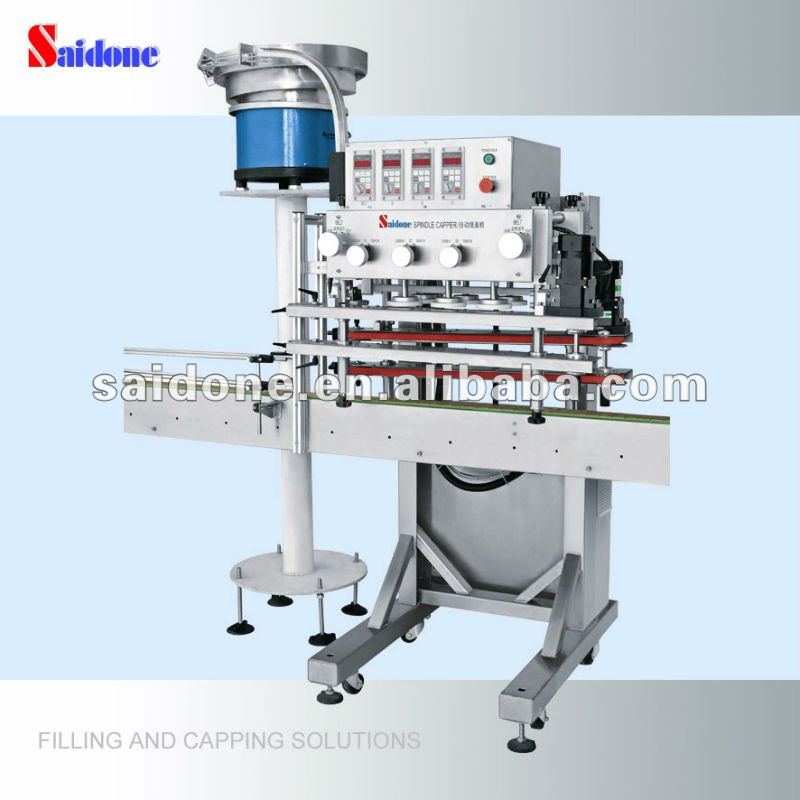

Fully Automatic Spindle Capping Machine

Fully Automatic Spindle Capping Machine
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: Saidone Model Number: ASP
Type: Capping Machine Packaging Material: Plastic Automatic Grade: Automatic
Application: Chemical Condition: New Packaging Type: Bottles
Driven Type: Electric Type: General Packaging Material: Wooden Box

Specifications
Our Automatic Spindle Capping machine can handle most bottle cap types, diameters of which range from 10mm to 100mm.
Our Automatic Spindle Capping machines can handle most bottle cap types, diameters of which range from 10mm to 100mm, and can handle up to 200 bottles per minute. The new innovative design makes it easy to use and maintenance free.

When using the ASP series machine, the operator is only required to pour the caps into the cap tank, then the cap feeder will place the caps on the bottles and the capper will secure the caps onto the bottles by three pairs of wheels automatically.

We offer 3 kinds of cap feeders for you to choose- Raising, Tilted Plate or Vibrating Cap Feeder. You can choose as your requirement.
Features Including:
1. We adopt the mode of 'one motor controls one capping wheel', which can ensure
the machine works stably and keep consistent torque under long term
working condition
2. The clamping belts can be adjusted separately, which allows the machine to
be suitable for capping bottles with various heights and shapes
3. If you choose the optional cap guiding system together with the machine, it
will then also be suitable for pump caps
4. The convenient construction adjustment system is equipped with precise ruler
and counter
5. The torque limiters can ensure the torque consistency effectively
6. The mainframe can be lifted and descended automatically by a motor
Technical Specifications:
Cap Dia.:          10~100mm
Bottle Height:    60~350mm
Power:              1.5KW
Dimensions:      According to the cap feeder equipped

Saturday, 25 February 2012

galvanized welded wire mesh sheets

galvanized welded wire mesh sheets
Quick Details
Place of Origin: Hebei China (Mainland) Brand Name: Longbang Model Number: L
Material: Low-Carbon Iron Wire Type: Welded Mesh Application: Construction Wire Mesh
Hole Shape: square or oblong Aperture: 1/4''*1/4''-2''*2'' Material: Galvanized Iron Wire
Wire Gauge: 0.5mm-1.8mm material: Low carbon steel wire,stainless steel... identification: ISO9001
technology: welded color: different colors to choose surface treatment: electro galvanized, hot-dipp...

Specifications
galvanized welded wire mesh sheets
1,ISO9001
2,electro/hot-dip galvanized
3,wire dia:0.5-1.8mm
4,precise parameters
galvanized welded wire mesh sheets
Material of Welded Wire Mesh: Low carbon steel wire, stainless steel wire
Welded Wire Mesh is known as welded wire or welded mesh by some customers. The structure of this kind of wire mesh is strong, lasting and rust-resistant. It is galvanized after welding. Two ways of galvanization: hot dipped( hot galvanized) & cold(electric) galvanized.
Stainless steel welded mesh is the most popular products in the industrial world.
PVC coated welded wire mesh is made of quality welded low carbon steel wire mesh galvanized before, then coated with PVC powder or PE powder. The coated layer is even, strong adhere siveness and bright luster with long live good anti-corrosive property. All kinds of colors can be coated according to customers' special requirements.
Specification List of Welded Wire Mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
1/4" x 1/4"
6.4mm x 6.4mm
22, 23, 24
3/8" x 3/8"
10.6mm x 10.6mm
19, 20, 21, 22
1/2" x 1/2"
12.7mm x 12.7mm
16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8"
16mm x 16mm
18, 19, 20, 21
3/4" x 3/4"
19.1mm x 19.1mm
16, 17, 18, 19, 20, 21
1" x 1/2"
25.4mm x 12.7mm
16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2"
38mm x 38mm
14, 15, 16, 17, 18, 19
1" x 2"
25.4mm x 50.8mm
14, 15, 16
2" x 2"
50.8mm x 50.8mm
12, 13, 14, 15, 16
Technical Note:
1, Standard roll length: 30m; width: 0.5m to 1.8m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls.


Galvanized Fencing Mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
2" x 3"
50mm x 75mm
2.0mm, 2.5mm, 1.65mm
3" x 3"
75mm x 756mm
2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm
2" x 4"
50mm x 100mm
2.11mm, 2.5mm
4" x 4"
100mm x 100mm
2.0mm, 2.5mm
Technical Note:
1, Standard roll length: 30m; width: 0.5m to 1.8m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls.


PVC Coated Welded Mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
1/2" x 1/2"
12.7mm x 12.7mm
16, 17, 18, 19, 20, 21
3/4" x 3/4"
19mm x 19mm
16, 17, 18, 19, 20, 21
1" x 1"
25.4mm x 25.4mm
15, 16, 17, 18, 19, 20
Technical Note:
1, Standard roll length: 30m; width: 0.5m to 1.2m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls.


Welded Wire Mesh Panel21Welded-wire-mesh6Welded-wire-mesh20

Friday, 24 February 2012

Automatic expire date inkjet coder

Automatic expire date inkjet coder
Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: ShengChuan Model Number: F-128
Type: Packing Machine Packaging Material: Wood Automatic Grade: Automatic
Power: 300W Application: Food&beverage,Chemical,Medcine,etc... Condition: New
Packaging Type:
Metal,plastic,wood,aluminum ...  Driven   Type:Electric

Specifications
1.Date, batch number, pattern/symbols
2.Can print bottle/cup/bag/can
3.Easy to change words
4.Clear printing
5.In line work.
High resolution continuous jet coder:
1. Stable performance;
2. It can print not only words and numbers but also brand name and patterns;
3. Operation keyboard is available;
4. Coding speed can reach 35 meter per minute which will not vary with the number of rows to be printed;
5. Environmental printing ink is used in process which needs no diluent, what is more, 300 million characters will be finished with 125ML ink (word height 3mm);
6. It can store 100 pieces of information and each information can have 100 characters;
7. It can finish coding on metal, plastic, aluminum foil, wood, paper and ceramics etc.

Thursday, 23 February 2012

POF Heat Shrink Film Production Line

POF Heat Shrink Film Production Line
Quick Details
Place of Origin: Shandong China (Mainland) Brand Name: tongjia Model Number: JG-RSM3B
Plastic Processed: PE Application: Film Blow Moulding Type: Extrusion Blow Moulding
Automatic: Yes Machine name: POF Heat Shrink Film Production L... High quality: CE certificate
Specifications
POF Heat Shrink Film Production Line is mainly used in packing export product, like foods, beverage or drinks and medicine.
POF Heat Shrink Film Production Line is designed and produced by our company. The POF film is mainly used in packing export product, like foods, beverage or drinks, medicine, healthcare product, stationary cosmetics, handicraft articles, newspaper and books, video products, electric spare parts of attachments and toys.
Model
JG-RSM3B1300
JG-RSM3B1800
Raw material

PP/PE
PP/PE
Max. folding dia. of film
mm
1200
1600
Film thickness
mm
0.015-0.025
0.015-0.025
Max. extrusion capacity
kg/h
80-120
100-120
Screw dia of inside and outside layer
mm
Φ45×2
Φ55×2
L/D ratio of screw
L/D
30:1
30:1
Motor power of inside and outside layer
KW
11×2
15×2
Heating power of inside and outside layer
KW
10×2
12×2
Screw dia. of middle layer
mm
Φ65
Φ80
L/D ratio of screw
L/D
30:1
30:1
Motor power of middle layer
KW
37
45
Heating power of middle layer
KW
16
25
Installed capacity (approx)
KW
160
190
Average consumption (approx)
KW
90
100
Dimension(L×W×H) (approx)
m
16×6×13.5
18×7×15
Total weight(approx)
T
20
28

Wednesday, 22 February 2012

SC-XG10 Semi-automatic small capping machine

SC-XG10 Semi-automatic small capping machine
Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: Shengchuan Model Number: SC-XG-10
Type: Capping Machine Packaging Material: Wood Automatic Grade: Semi-Automatic
Power: 80W Application: Foods, drinks,seasoning, health ca... Condition: New
Packaging Type: Glass bottles Driven Type: mechanical, electric and pneumatic

Specifications
1.Mechanical,electrical and pneumatic integration design
2.Semi-automatic
3.Convenient operation and maintenance
The machine name:SC-XG10 Semi-automatic small capping machine

The introduction of the machine:
The machine applies mechanical and electrical integration design with compact and rational structure and features convenient in operation and maintenance. It has better compatibility for bottles range. Therefore, the machine is widely used in the capping of round and square thread caps for foods, beverage, madicine, chemicals and cosmetics etc.

The technical paramter:
Power supply: AC220V/50Hz;

Power consumption: 60W;

Air source pressure: 5-6kg/cm2

Cap diameter: 20-50mm;

Bottle height: 50-300mm;

Twisting force: 5-20N.m;

Percentage of damage: ≤ 0.1%

Production capacity: 600-1800 bottle/hour;

Machine weight: 35kg;

Overall dimension: 620LX560WX770Hmm.

The photos (for your referance only):



.jpgSC-XG150.jpgSCXG-130.jpgSC-ZXG150.jpgSC-ZXG250.jpg .jpg

Tuesday, 21 February 2012

PW-C380 3D Wrap Machine

PW-C380 3D Wrap Machine
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: AK Model Number: PW-C380
Type: Wrapping Machine Packaging Material: Plastic Automatic Grade: Automatic
3D wrap machine: 3D wrap machine Usage: Outer
Specifications
1.Fully automatic 3D wrap machine
2.Easy adjustable format changes
3.Single case or multiple cases wapping
4.PLC&HMI
Type:PW-C380
Machine name:3D wrap machine
Range for wrapping dimension:Length: 50-250mm

Width: 30-200mm

Thickness: 20-100mm
Height of feeding conveyer belt interface:820±30mm

(available for modification as per clients demands)
Overall dimension of equipment:1800mm(L)×1000mm(W)×1750mm (H)

(available for modification as per clients demands)
Length of feeding conveyer belt:1500mm

(available for modification as per clients demands)
Thickness of BOPP film: 0.02-0.04mm
Overwrapping film:BOPP
Output (package/min):≥30 packages
Protection grade of electrical control box:IP54
Operating voltage: 380V (three-phase-five-wire system)
Operating frequency: 50Hz
Input power:no less than 10KW
Power consumption:3KW
Electrical control:PLC control (SIEMENS),thermo-weld time,
temperature control and display as well as temperature control and display for lateral seal
Operating pressure of air source: 0.6MPa
Air consumption:200litre/min
Specially Description:
1. Equipment frame must be welded with carbon steel with surface subjecting to plastic spraying treatment. Partial structural parts must be made of 6061 alloy aluminum.
2. Equipment surface must subject to anodic oxidation treatment. Work top and parts in contact with wrappings must be made of G304 stainless steel.

Monday, 20 February 2012

Cap liner machine

Cap liner machine
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: FURI Model Number: FRTB-SD1
Type: Wrapping Machine Packaging Material: Plastic Automatic Grade: Automatic
Application: Machinery & Hardware Condition: New Packaging Type: Bottles
Driven Type: Electric
Specifications
Cap liner machine widely used in the industry of Bottle Cap, Liner, Medicine, Foodstuff, Household Chmeicals, Package, etc.
Cap liner machine
1.  Scope of Application:
This machine is widely used in the industry of Bottle Cap, Liner, Medicine, Foodstuff, Household Chmeicals, Package, etc. It is an ideal inserting machine.
2.  Features:
1) This machine replaces the handwork. It automatically inserts the liner into the bottle cap, and can raise work efficiency greatly.
2) Reasonable Liner Sealing, Fast speed, High efficiency, Safe and Sanitary product.
3) This machine is specially suitable for the occasion which has strict and severe sanitary requirements. It can avoid secondary pollution on the materials, and it can omit the sterilizing technics.
4) Sorting Cap System attaches the function of cap elimination, in order to make sure every finished bottle cap upward.
5) It has automatic counter inside, and can greatly raise the working efficiency afterwards.
6) It delivers the bottle cap by driving convey with accurate position. This machanism can put the messy bottle caps in the vibrating loading tray in order, and load them into the guide rail.
The turnplate positions the caps and then it delivers to glue caps one by one automatically. Finally it automatically delivers to the outleting dipper.
7) It adopts mechanical drive deliver position machanism to make the machine operate smoothly. It is suitable for various specifiations of bottle caps and aluminum foil.
8) It adopts PLC controller, and has the alarm while out of liner and bottle cap. The electric control system adopts frequency conversion techniques. It has the advantages of free setting, wide application, easy operation, stable working, convenient cleaning and maintenance, durable in use, etc.
9) Our fully automatic packing machine is in strict accordance with National GMP Standard and process requirements.
3. Structure of equipment:
1) Automatic sorting cap machanism: it puts the messy bottle cap in order, and makes all cap upwards.
2) Bottle cap delivering machanism:it delivers the ready bottle cap into the liner inserting machanism in order and correct way.
3) Liner inserting machanism: it inserts the liner to the cap to finish liner inserting procedure.
4) Gluing machanism: it finishes the gluing before liner inserting (as per buyer’s option).
4. Technical Parameters:
AL Specification
Productivity
Voltage
Power
Dimension L×W×H
N.W.
20-80
60-100 bottles/min.
220 V
1.2 KW
1200×600×1500(mm)
350(KGS)

Sunday, 19 February 2012

Model LB2 Semi-Automatic Powder Filling Machine

Model LB2 Semi-Automatic Powder Filling Machine
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: Aligned Model Number: LB2
Type: Packing Machine Packaging Material: Plastic Automatic Grade: Semi-Automatic
Power: 1.5Kw Application: Chemical Condition: New
Packaging Type: bags, bottles Driven Type: Pneumatic Control: PLC
Specifications
It is an semi-automatic filling machine suitable for powder in the weight range of 1-5000g.
PLC CONTROL SERVO MOTOR DRIVEN
Applications:
It is an semi-automatic filling machine suitable for powder in the weight range of 1-5000g. Automatic measuring, filling, manual bag feeding. Only need one people.

Main Technical Parameters:
Model
LB2
Measuring type
Screw filling,gravity type electronic balance weighing
Operation interface
PLC control, 2.7inch touch screen display
Packing weight
1-5000g (by exchanging screw)
Filling accuracy
weight≤100g error≤±0.5-1g

weight100g-1000g error≤±0.5%-1%

weight 1000g  error≤±0.25%-0.5%
Filling speed
10-50bags/min
Volume of hopper
45L
Voltage
380/220v   50-60Hz
Power
1400W
Weight
150Kg
Overall dimension
800x980x2120mm

Saturday, 18 February 2012

pharmaceutical lab granulator machine

pharmaceutical lab granulator machine
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: Canaan Model Number: LHS
Application: Granules Type: Granulator Model: LHS100-800
Feed capacity: 20-320 kg Material: Austenitic stainless steel

Specifications
1.Pharmaceutical lab granulator machine
2.Quality Assurance ( CE,CQC,GMP,ISO,etc )
3.OEM acceptable
LHS series compact mixer and granulator/pharmaceutical lab granulator machine
LHScompact mixer and granulator.jpg

Application
LHS Series Compact Mixer and Granulator is one of the standard process equipments in the solid dosage production procedure in pharmaceutical industry, and is also widely used in chemical, foodstuff industries, etc. This equipment has functions of mixing and granulation.

Principle
Charge the materials by Pharma Lifter or vacuum charging system. Start the procedure, under the action of the impeller, materials are set in a multidimensional shear flow state and thoroughly mixed. Then, the spray gun system sprays the binder solution into the bowl to agglutinate with the materials and, under the combined action of the impeller and chopper, uniform and porous granules are produced. On finishing the granulation process, granules are discharged through the discharge port to the next process.

LHS .jpgLHS main technical parameters.jpg
Features
This equipment is successfully designed on the basis of a wide research, absorption and digestion of foreign advanced models. The equipment is made of high quality Austenitic stainless steel, all the corners and angles are rounded off using arc transition technique; the whole machine has no dead angle, residue, uneven surfaces or protruded screws. PLC is designed to ensure a fully automatic control. All the operations are automatically finished according to the customer’s set parameters; moreover, process parameters can be printed and records of original data are truthfully reliable. LHS Series Compact Mixer and Granulator comply entirely with GMP requirements for medicine production.

Reference pictures
313

Friday, 17 February 2012

GLS medicine grinding machine

GLS medicine grinding machine
Quick Details
Place of Origin: Jiangsu China (Mainland) Brand Name: GUANGYANG Model Number: GY
Application: Liquid Type: Mixing Machine Product Type: Paint
Machine Type: Mill
Specifications
GLS medicine grinding machine
1. wet-milling equipment
2. applicable to Apaint, dysestuff, pigment, printingink, cosmetic
GLS basket type grinder
1.Overview
GLS basket type grinder is wet grinding equipment,is applicable to some industry with high demand on fineness,such as paint,dysestuff,pigment,printingink,cosmetic,pesticides,medicine and etc..This equipment has changed the traditional productive technology,compand the processes disperse and sanding.It reduces technical process, dispense with pump valve,enhance production efficiency,and without waste of raw material.

2.Main feature
The feeding rotor and dispersion disc of GLS basket type grinder forms great liquid recycle system,under the high speed drive of driveplate, the high hardness grinding mediums has outstanding grind effect.It has great fineness,equally distributed particle size and with high efficiency.Without blind angle,clear discharging,easy to clean,so it is convenient for change color or other products.

3.Model
ItemCapacityDriving powerRotationl SpeedGrind basket capacityHeight of the liftMedium size
(L)(kw)(rpm)(L)(mm)(mm)
GLS-410-10040-28803.58002.0~2.4
GLS-7.540-1807.50-14404.89002.0~2.4
GLS-1145-250110-14406.59002.0~2.4
GLS-1550-350150-144099002.0~2.4
GLS-18.5100-50018.50-14401711002.0~2.4
GLS-22150-800220-14402011002.0~2.4
GLS-30200-1200300-14403211002.0~2.4
GLS-37500-1500370-14403916002.0~2.4
GLS-45800-2000450-14405216002.0~2.4
GLS-751200-3000750-14408518002.0~2.4


Thursday, 16 February 2012

seasoning packaging machine Automatic pouch layer

seasoning packaging machine Automatic pouch layer
Quick Details
Place of Origin: Shandong China (Mainland) Brand Name: FUSHENGSIRUI Model Number: FS-HD-140
Usage: Plastic Forming Machine Automatic Grade: Automatic Condition: New
Power source: 220V/50HZ120W Bag width: 80/100mm advantage: Energy saving, low consumption, savi...
size: L:820 W:540 H:1400 used for: Used for filling machine Main feature: can adjusted at anytime according...
Specifications
1 Folding speed and specification can be adjusted at anytime according to need.
2 High-quality, low price


1,Main Features,
This machine is designed independently and produced painstakingly on the base of improvement of the advanced international & domestic technique of the same kind of products. The folding and placing of small bag package like seasoning packets of instant noodles, rice noodles, and cookie dryers confirm to industry standards and technical requirements. Folding speed and specification can be adjusted at anytime according to need. This machine is beautiful, small, energy saving, with compact structure, low gravity, little power and low consumption which effectively save manpower cost and reduce human operation mistakes.The machine has reached advanced standards at home and abroad for its parameters of folding speed, shape, operation stability and low error rate.
2,Main technical parameters
Model:FS-HD-140Weighing type folding machine
Size (length×width×height)820×540×1400
Power source220V/50HZ120W
equipment net weight  106KG
  Bag width80/100mm
Weighing scope  less than 60KG

Wednesday, 15 February 2012

2 in 1 Shrink Packing Machine/shrinker

2 in 1 Shrink Packing Machine/shrinker
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: YUTE Model Number: BSP5540
Type: Wrapping Machine Packaging Material: Plastic Automatic Grade: Automatic
Power: 3.0KW Application: food,drink,medicine,wood work,so o... Condition: New
Packaging Type: Cans Driven Type: Electric

Specifications
1.shrink packing machine adopt the technology of hot air cirsculating so as to adjust temperature
2.CE certificate
3.3 in one
Two-in-one shrink packing machine/shrink wrapping machine
This machine is mainly used in the packing of following products:food,drink,medicine,hardware,wood work,stationers' goods,printed matter,plastics,glass work and electronic applicants.
All the shrink packaged products are not noly elegant in look but also cost-saving in production
In the mean time,shrinking packaging is conducive to the preserve of the sealed products

Model                            BSP5540
Voltage                         220v/50HZ
Carry Speed                      5-10m/min
Heating Power             3.0KW
Carry Weight                     15kg
Max.Shrink Size             400x 550 mm
Weight                                120KG
Overall Dimensions     1500  x 700 x 1100 mm


Monday, 13 February 2012

Capsule polishing machine YPJ

  • Capsule polishing machine YPJ

    Item specifics

    Place of Origin:
    China (Mainland)
    is_customized:
    Yes
    Brand Name:
    TIANHI
    Model Number:
    YPJ

    Product Description

    Capsule polishing machine YPJ



    Specifications
    1.For capsule and tablet;
    2.Max. output: 7000pcs/min;
    3.Power: 220V,50Hz,0.18kw;
    4.Drive by stepless regular motor;
    5.Polish
    This machine is a novel and special equipment for pharmacy. Driven by stepless regular motor, it can polish and clean the dust attaching to the capsules or tablets to improve the surface quality. It is suitable for various kinds of capsules and tablets.

    Main Technical Parameters
    Maximum Production Capacity (pcs/min)7000
    Total Power220V 50Hz 0.18kw
    Overall Dimension (mm)1300×500×1200(L×W×H)
    Weight (kg)50
    This machine applies hair brush polishing, for the enclosed transportation structure, the part which the organism and the drugs contacts all uses non-toxic, the anti-corrosive material manufacture, conforms to the GMP standard requirement, has the velocity modulation and not velocity modulation two kinds.
    Use: Uses in eliminating the powder froth which adheres to the capsule or the pill surface, causes its purely, thus enhances the surface smooth finish.
    Characteristic: Uses the microcomputer control, the velocity modulation implements the stepless speed regulation, can satisfy the different capsule pill to the different speed request of the polishing; The main axle angle of tilt may adjust willfully in certain scope, satisfying the different drugs to the different time length request of the polishing; not velocity modulation moves under the fixed speed.





    Packaging Details

    Unit Type:
    piece
    Package Weight:
    70.0kg (154.324lb.)
    Package Size:
    23cm x 11cm x 14cm (9.06in x 4.33in x 5.51in)

Sunday, 12 February 2012

CFQ-300 tablet deduste


CFQ-300 tablet deduster+free shipping

Item specifics

Place of Origin:
Jiangsu China (Mainland)
Application:
Tablet
Brand Name:
Hengrui
Model Number:
CFQ-300
Type:
tablet deduster
color:
silver
material:
SS304 + organic glass
net weight:
34kg
gross weight:
55kg

Product Description

The CFQ-300 Deduster is an auxiliary mechanism of High Tablet Press to remove some powder stuck on surface of tablets in pressing process.
It is also equipment for conveying tablets, lump drugs, or granules with dustlessness, and can be suitable for joining with an absorber or a blower as a vacuum cleaner, with its high efficiency, better dust-free effect, lower noise, and easy maintenance.
The CFQ-300 Deduster is widely used in pharmaceutical, chemical, food industry, etc.
Main  characteristic:
Design  of  GMP
Double  layers  screen  structure, separating  tablet  &  powder
V-shape  design  for  the  powder-screening  disk,  polished  efficiently
Speed  and  amplitude  adjustable
Easily  operating  and  maintaining
Operating  reliably  and  low  noise
Main Technical Data:
Output
550000 table/h
Max.noise
<82 dB
Dust scope
3 m
Atmospheric pressure
0.2 Mpa
Powder supply
220V/50Hz/50W
Overall Size
410*410*880 mm
Net Weight
34 kg

Packaging Details

Unit Type:
piece
Package Weight:
50.0kg (110.231lb.)
Package Size:
55cm x 55cm x 105cm (21.65in x 21.65in x 41.34in)

Friday, 10 February 2012

Electrolyte Analyzer (FT-300)

Electrolyte Analyzer (FT-300)
Product Description
Features
ISE (ion selective electrode) with longer lifespan and maintenance-free
Getting the result of K+, Na+, CI-, Ca++ in one minute
Sample: Serum, whole blood, plasma, urine(Ca++, pH)
Full automatic two-point calibration
Unique back-flush technology to ensure less clogging
Sleep model to reduce reagent consumption
Check working status of electrode and indicate the unusual result automatically

Internal diagnosis procedure, automatic indication and elimination of failures
Automatic transmission of test result, connectable to other management system.
Measure Method Ion Selective Electrode ( ISE )
Sample Varieties Serum, Plasma, Whole Blood, Urine ( Ca++ \ pH )
Sample Volume: 100 μ L
Calibration: Full automatic one-point & two-point calibration
Testing time: < 1 minute (including sampling, measurement, washing and printing)
Display: 128 * 64 Graphic Lattice LCD (LED Backlight)
Printer: Internal
Data output: RS-232
Dimension: 36cm * 33cm * 25cm (H * W * D)
Weight: 7 kg.
Specification
Item Measure Range Resolution CV Value
K+ 0.50 mmol/L - 15.00 mmol/L   0.01 mmol/L   CV ≤ 1.0 %
Na+ 30.0 mmol/L - 200.00 mmol/L   0.1 mmol/L   CV ≤ 1.0 %
Cl- 30.0 mmol/L - 200.00 mmol/L   0.1 mmol/L   CV ≤ 1.0 %

Thursday, 9 February 2012

Single punch Tablet Press Machine THP/ Flower Basket Tablet press machine/big pills pressing/big tablet press machine

  • Single punch Tablet Press Machine THP/ Flower Basket Tablet press machine/big pills pressing/big tablet press machine
    Single punch Tablet Press Machine THP/ Flower Basket Tablet press machine/big pills pressing/big tablet press machine

    Item specifics

    Place of Origin:
    Shanghai China (Mainland)
    Production Capacity:
    3000P/Hour
    Type:
    Single Punch
    Brand Name:
    Shanghai
    Model Number:
    THP
    Transportation:
    By sea
    Max pressure:
    40KN
    Max Dia. of tablet:
    30mm
    Max Filling Depth:
    25mm
    Max Thickness:
    22mm
    Weight:
    520KG

    Product Description

    Big Tablet Making Machine




    Big tablet making machine is a continuous and automatic tablet press which is one of the most important equipments in pressing granular raw materials into tablets or medicines. It is fit for the pressing of medicinal tablets, coffee pills, powder metallurgy, electronic elements, various tablets of pesticide and fertilizer etc. in pharmaceutical, chemical, food and electronic industries. Big tablet making machine can be used in pressing special-shaped circular tablets, and tablets with both sides pressed with trademarks, letters and simple patterns. Big tablet making machine is widely used in small factory, laboratory and hospital.
    Tablet press, is also can be called as tablet press machine, pill press machine, tablet compression machine and tablet making machine, is for pressing powder raw materials into tablets
    .

    Technical Parameters of Big Tablet Making Machine
    Model
    THP
    THP-I
    THP-II
    Maximum Pressure(KN)
    40
    100
    100
    Maximum Dia. of Tablet(mm)
    30
    40
    50
    Maximum Filling Depth(mm)
    25
    45
    45
    Maximum Thickness of Tablet(mm)
    22
    35
    35
    Annular Tablet aperture(mm)
    5-10
    6-14
    6-14
    Filling Depth of Circular Tablet(mm)
    25
    25
    45
    Weight(KG)
    520
    750
    770
    Production Capacity(pieces/hour)
    3000
    2760
    2760
    Motor power(KW)
    1.1
    2.6
    3.7
    Overall Size(mm)
    685 x 565 x 1610
    666 x 860 x 1824
    666 x 860 x 1824



     THP-4-2
    THP-4-3
    THP-4-1
