galvanized welded wire mesh sheets

galvanized welded wire mesh sheets
Quick Details
Place of Origin: Hebei China (Mainland) Brand Name: Longbang Model Number: L
Material: Low-Carbon Iron Wire Type: Welded Mesh Application: Construction Wire Mesh
Hole Shape: square or oblong Aperture: 1/4''*1/4''-2''*2'' Material: Galvanized Iron Wire
Wire Gauge: 0.5mm-1.8mm material: Low carbon steel wire,stainless steel... identification: ISO9001
technology: welded color: different colors to choose surface treatment: electro galvanized, hot-dipp...

Specifications
galvanized welded wire mesh sheets
1,ISO9001
2,electro/hot-dip galvanized
3,wire dia:0.5-1.8mm
4,precise parameters

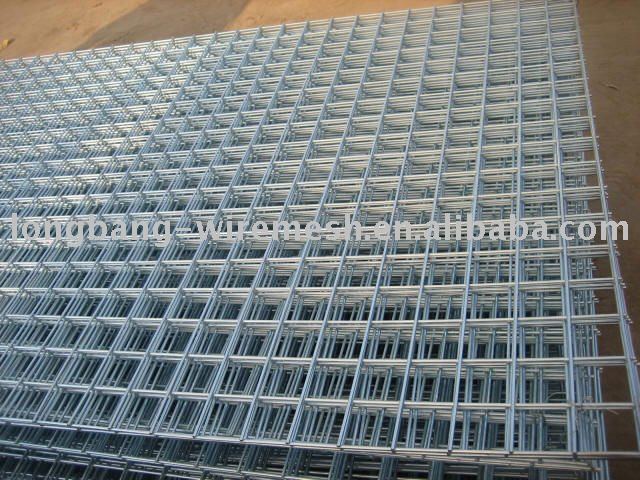

galvanized welded wire mesh sheets
Material of Welded Wire Mesh: Low carbon steel wire, stainless steel wire
Welded Wire Mesh is known as welded wire or welded mesh by some customers. The structure of this kind of wire mesh is strong, lasting and rust-resistant. It is galvanized after welding. Two ways of galvanization: hot dipped( hot galvanized) & cold(electric) galvanized.
Stainless steel welded mesh is the most popular products in the industrial world.

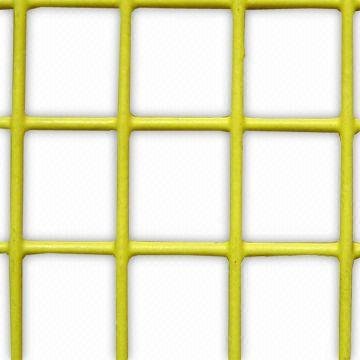

PVC coated welded wire mesh is made of quality welded low carbon steel wire mesh galvanized before, then coated with PVC powder or PE powder. The coated layer is even, strong adhere siveness and bright luster with long live good anti-corrosive property. All kinds of colors can be coated according to customers' special requirements.
Specification List of Welded Wire Mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
1/4" x 1/4"
6.4mm x 6.4mm
22, 23, 24
3/8" x 3/8"
10.6mm x 10.6mm
19, 20, 21, 22
1/2" x 1/2"
12.7mm x 12.7mm
16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8"
16mm x 16mm
18, 19, 20, 21
3/4" x 3/4"
19.1mm x 19.1mm
16, 17, 18, 19, 20, 21
1" x 1/2"
25.4mm x 12.7mm
16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2"
38mm x 38mm
14, 15, 16, 17, 18, 19
1" x 2"
25.4mm x 50.8mm
14, 15, 16
2" x 2"
50.8mm x 50.8mm
12, 13, 14, 15, 16
Technical Note:
1, Standard roll length: 30m; width: 0.5m to 1.8m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls.


Galvanized Fencing Mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
2" x 3"
50mm x 75mm
2.0mm, 2.5mm, 1.65mm
3" x 3"
75mm x 756mm
2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm
2" x 4"
50mm x 100mm
2.11mm, 2.5mm
4" x 4"
100mm x 100mm
2.0mm, 2.5mm
Technical Note:
1, Standard roll length: 30m; width: 0.5m to 1.8m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls.


PVC Coated Welded Mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
1/2" x 1/2"
12.7mm x 12.7mm
16, 17, 18, 19, 20, 21
3/4" x 3/4"
19mm x 19mm
16, 17, 18, 19, 20, 21
1" x 1"
25.4mm x 25.4mm
15, 16, 17, 18, 19, 20
Technical Note:
1, Standard roll length: 30m; width: 0.5m to 1.2m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls.


Welded Wire Mesh Panel21Welded-wire-mesh6Welded-wire-mesh20
