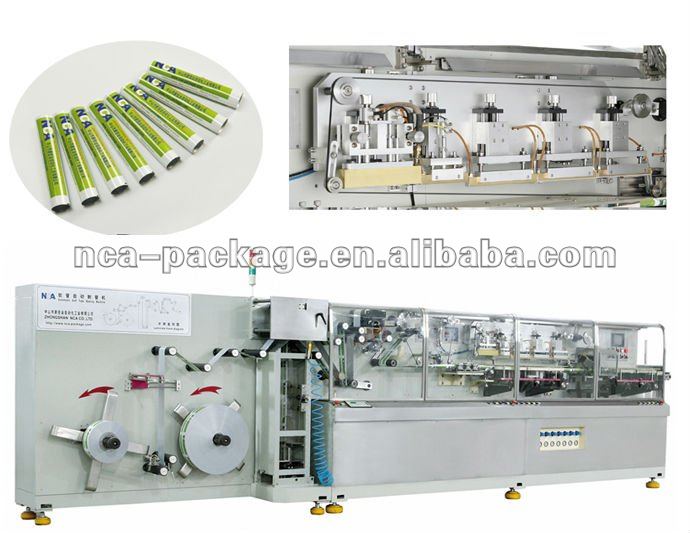

NCA8201G-100 Automatic Laminated Soft Tube Making Machine

NCA8201G-100 Automatic Laminated Soft Tube Making Machine
Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: NCA Model Number: NCA8201G-100
Type: laminated soft tube making machine Packaging Material: Wood Automatic Grade: Automatic
Power: 10KW Application: toothpastic,comestic,medicine and ... Condition: New
Packaging Type: woodencase Driven Type: Pneumatic Brand name: NCA
Model number: 8201G-100 Certificate: ISO9001:2008 and CE
Specifications

The machine is used to make tubes for packaging various cream or milky products such as toothpaste, cosmetics and medicine


NCA8201G-100 Automatic Laminated Soft Tube Making Machine
1. Usage:

The machine is used to make tubes for packaging various cream or milky products such as toothpaste, cosmetic, medicine, and food etc. by shaping, inner and outer with stainless steel heat sealing bands, high frequency welding and cutting (in the designed length) the laminated material automatically.

2. Main Technique Features:
  1.  The machine does not stop for the material is stored automatically before changing the roll.
  2. Material feed system has the AUTO spare side of material cutting and the rectifying functions.
  3.  Roll unwinding tension AUTO control.
  4. Inner and outer with stainless steel heat sealing bands, high frequency welding.
  5.  The temperature is tested by infrared ray, control the product quality precisely.
  6.  Servo cutter: roller cutter or rotary cutter for choosing.
  7.  Two ways of cutting: detector photo-cell track; designed length setting.
  8.  PLC control, trouble warning and display.
  9.  Parameter can be set by touch screen, easy operation.
  10.  Laminate tie-ins can be tested automatically, alarm and remove the waste material.
  11. Water chilling unit, make sure the tube seam firm and beautiful.
3. Main Technical Specification

Tube diameterφ28-φ45mmStandard part can be one of the followings: φ28, φ30, φ32,φ35,φ38
Tube length≥ 50mm
Length allowance±0.25mm
Tube making speed100pieces/min (L=160mm)
Total power10 KW
Power3P, AC380V, 50HZ
Compressed air consumption30m3/h
Pressure of the compressed air0.5-0.6MPa
Cooling water flow20L/min
Cooling water pressure0.1-0.3Mpa
Cooling water temperature15-20ºC
DimensionL×W×H:  6195×838×1640 (mm)
Total weight2500Kg
