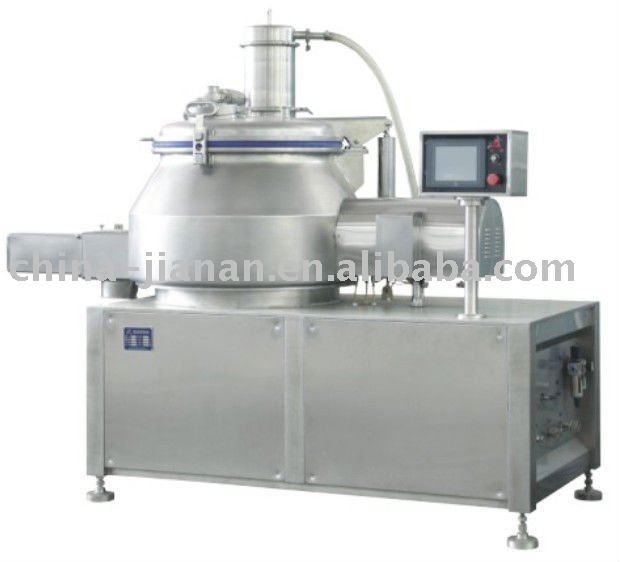

pharmaceutical lab granulator machine

pharmaceutical lab granulator machine
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: Canaan Model Number: LHS
Application: Granules Type: Granulator Model: LHS100-800
Feed capacity: 20-320 kg Material: Austenitic stainless steel

Specifications
1.Pharmaceutical lab granulator machine
2.Quality Assurance ( CE,CQC,GMP,ISO,etc )
3.OEM acceptable

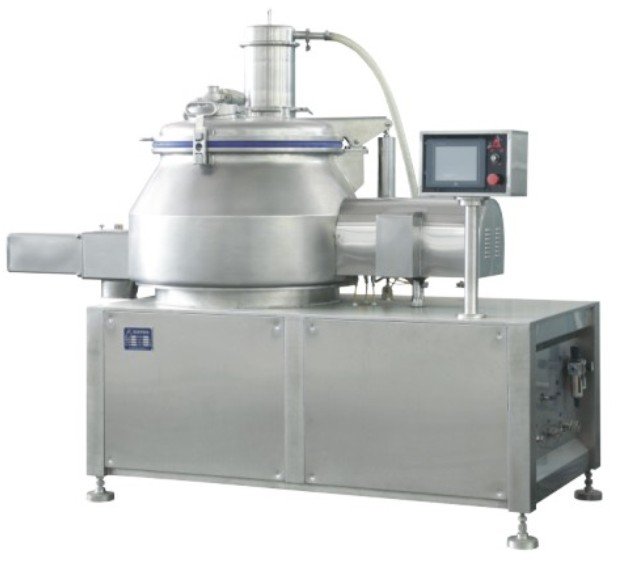

LHS series compact mixer and granulator/pharmaceutical lab granulator machine
LHScompact mixer and granulator.jpg

Application
LHS Series Compact Mixer and Granulator is one of the standard process equipments in the solid dosage production procedure in pharmaceutical industry, and is also widely used in chemical, foodstuff industries, etc. This equipment has functions of mixing and granulation.

Principle
Charge the materials by Pharma Lifter or vacuum charging system. Start the procedure, under the action of the impeller, materials are set in a multidimensional shear flow state and thoroughly mixed. Then, the spray gun system sprays the binder solution into the bowl to agglutinate with the materials and, under the combined action of the impeller and chopper, uniform and porous granules are produced. On finishing the granulation process, granules are discharged through the discharge port to the next process.

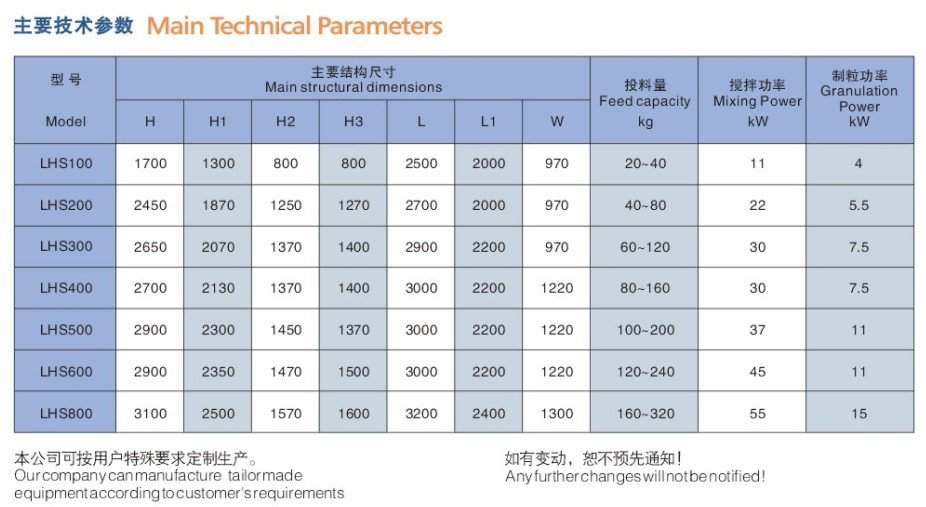

LHS .jpgLHS main technical parameters.jpg
Features
This equipment is successfully designed on the basis of a wide research, absorption and digestion of foreign advanced models. The equipment is made of high quality Austenitic stainless steel, all the corners and angles are rounded off using arc transition technique; the whole machine has no dead angle, residue, uneven surfaces or protruded screws. PLC is designed to ensure a fully automatic control. All the operations are automatically finished according to the customer’s set parameters; moreover, process parameters can be printed and records of original data are truthfully reliable. LHS Series Compact Mixer and Granulator comply entirely with GMP requirements for medicine production.

Reference pictures
313
