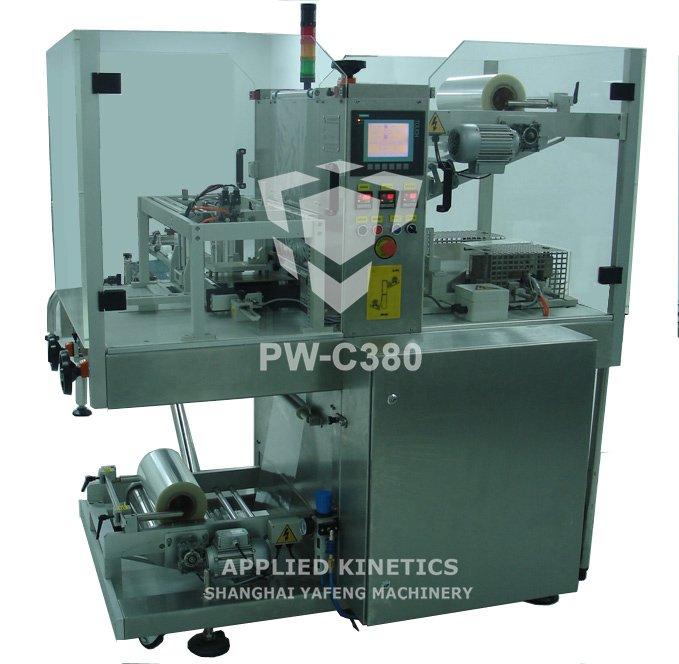

PW-C380 3D Wrap Machine

PW-C380 3D Wrap Machine
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: AK Model Number: PW-C380
Type: Wrapping Machine Packaging Material: Plastic Automatic Grade: Automatic
3D wrap machine: 3D wrap machine Usage: Outer
Specifications
1.Fully automatic 3D wrap machine
2.Easy adjustable format changes
3.Single case or multiple cases wapping
4.PLC&HMI
Type:PW-C380
Machine name:3D wrap machine
Range for wrapping dimension:Length: 50-250mm

Width: 30-200mm

Thickness: 20-100mm
Height of feeding conveyer belt interface:820±30mm

(available for modification as per clients demands)
Overall dimension of equipment:1800mm(L)×1000mm(W)×1750mm (H)

(available for modification as per clients demands)
Length of feeding conveyer belt:1500mm

(available for modification as per clients demands)
Thickness of BOPP film: 0.02-0.04mm
Overwrapping film:BOPP
Output (package/min):≥30 packages
Protection grade of electrical control box:IP54
Operating voltage: 380V (three-phase-five-wire system)
Operating frequency: 50Hz
Input power:no less than 10KW
Power consumption:3KW
Electrical control:PLC control (SIEMENS),thermo-weld time,
temperature control and display as well as temperature control and display for lateral seal
Operating pressure of air source: 0.6MPa
Air consumption:200litre/min
Specially Description:
1. Equipment frame must be welded with carbon steel with surface subjecting to plastic spraying treatment. Partial structural parts must be made of 6061 alloy aluminum.
2. Equipment surface must subject to anodic oxidation treatment. Work top and parts in contact with wrappings must be made of G304 stainless steel.
