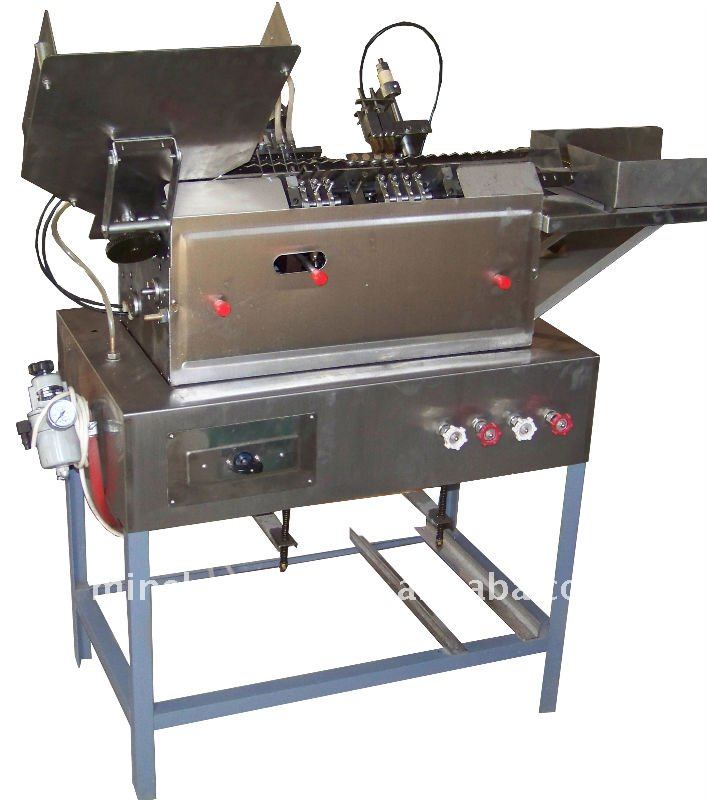

Automatic Two Needles Ampoule Drawing Filling and Sealing Combined Machine LSAG

Automatic Two Needles Ampoule Drawing Filling and Sealing Combined Machine LSAG

Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: minsheng Model Number: LSAG
Usage: Ampoule filling automatic: Filling Machine Condition: New
Automatic Grade: Automatic
Specifications
1.ampoule filling machine
2.1-20ml
3.piston pump,transducer peristaltic pump
4.Stainless SUS304 or 316L
5.touch screen
Detailed Product Description
1.ampoule filling machine
2.1-20ml
3.piston pump,transducer peristaltic pump
4.Stainless SUS304 or 316L
5.touch screen

Specification:
ampoule filling machine
The machine is a new generation of the ampoule drawing ,filling and sealing combined equipment for injections .It adopts the rectangular feeding instead of the traditional ampoule feeding methods .In such case ,the feeding is steady with no easy broken ampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore ,the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch .It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .It reduces the broken rate of the finished products of ampoules tremendously......
Technical parameters:
Model
AAG51/2/3/ 5/10/20

Specification(ml)
1,2,3, 5-10-20


Capacity (pcs/min)
30-70

Power(kw)
0.37

Fuel consumption
2-2.5m3/h(gas)
0.08-0.1MPa(LPG)

Combustion-supporting Consumption
0.7m3/h Oxygen 0.1MPa

Outline Dimension(L*W*H)
1300*700*1400

Machine Weight(kg)
150

Power Supply
380V 50Hz

Specification
1~2ml
5~10ml
20ml
Output
4000~4800pics/H
1680~2100pics/H
1280~1800/H
Output of Double Injection

3200~4200pics/H
Current
380V 037Kw 0.55Kw(Double Injection)
