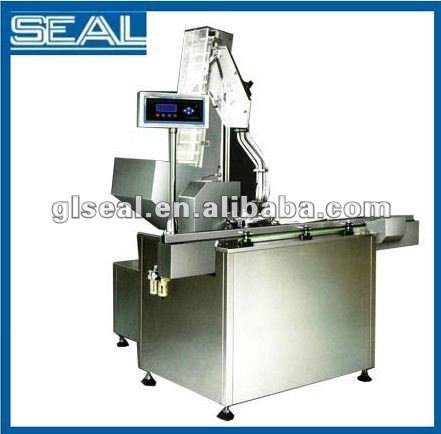

cap and lining assemble machine

cap and lining assemble machine
Quick Details
Place of Origin: Guangxi China (Mainland) Brand Name: SEAL Model Number: SR-CL-III
Type: Cap lining machine Packaging Material: Wood Automatic Grade: Automatic
Power: 1200W Application: Food,Chemical,Commodity,Beverage,M... Condition: New
Packaging Type: caps Driven Type: Electric and Pneumatic cap size: 15-60mm
speed: 65 caps per minute inserting: for CRC caps usage: cap liner machine
Specifications
1)Cap size15-60mm
2)with Rejection system
3)speed variator conveyer
4)PLC ,touch screen
5)65 caps /min

 Middle-Speed Cap Inserting Machine SR-CL-III

 1: This liner capinserting machine is suitable for inserting the liners into the containers .
2: Stainless steel SUS 304 main machine frame and housing
3: One sensor for the cap coming into the stuffing area ( no cap coming ,no stuffing ) .
4: Rejection system for improperly stuffed caps and/or missing foil caps.
5: One conveyer for caps transmission with speed variator .
6:One set of stuffing system with high sensors .
7: Large capacity cap hopper to stock caps for long -time running without continual refilling.
8: Adjustable cap chute is suitable for different sizes of caps. The cap elevator will pause automatically when the cap chute is full.
9. BUTTON CONTROL TYPE .
10: 4 wheels and 4 anti-vibrator legs.
11: Meet GMP requirement .
12:Spare parts for one year, operation manual.
13. Wooden case.

TECHNICAL DETAILS
Output
Dia. Of Cap  15-60MM        Max.65 caps /min
Height of Cap  ≤25MM
Top of Cap  Flat
Liner  Rigid Foil ,not Soft
Voltage 220V/50HZ
Power   1.2KW
Outer Dimension  1200*600*1500 MM
Weight 400KG
 Cap Inserting Machine SR-CL-III.jpg
