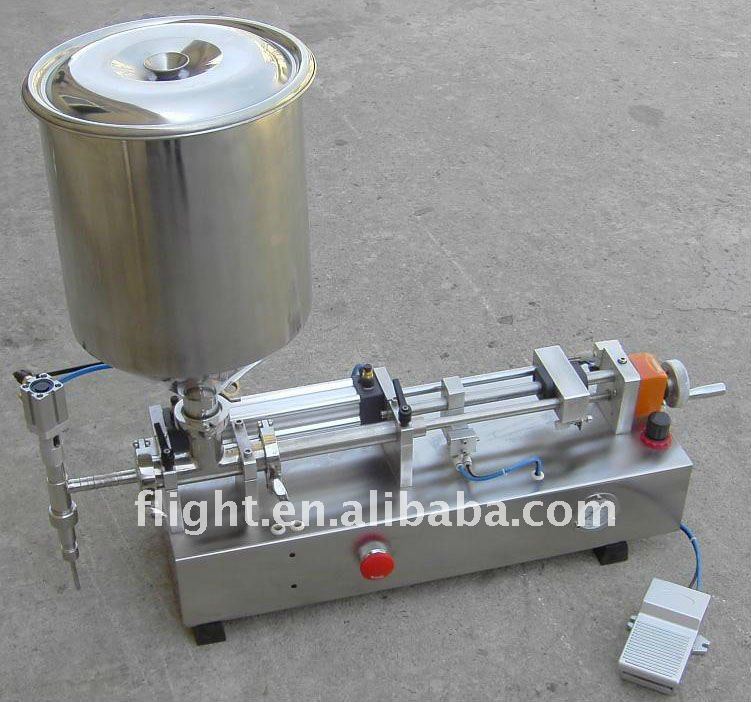

Liquid bottle filling machine HSFA-1000

Liquid bottle filling machine HSFA-1000
Quick Details
Place of Origin: Shanghai China (Mainland) Brand Name: flight Model Number: HSFA-1000
Application: Liquid Type: Filling Equipment Drive type: compressed air: Filling volume: 100...

Specifications
Filling liquid and semiliquid products
Piston filling machine
Meet the GMP standard
Liquid bottle filling machine
Description:
This piston filling machines HSFA series are applied to fill liquid and semiliquid (viscouse
Liquid, ointment) products into various containers.
This pure pneumatic machine is especially suitable for the explosion-resistant and humid
Production environment.
This machine is widely used in pharmacy, foodstuff, chemical, cosmetic industries and
other special industries.
Features:
1.  All the components that come in contact with product are made of 316L stainless steel
     Which is sourced from Sweden and processed by CNC machines to ensure a surface
     Roughness lower than 0.8,no pollution, easy cleaning, meet the GMP standard.

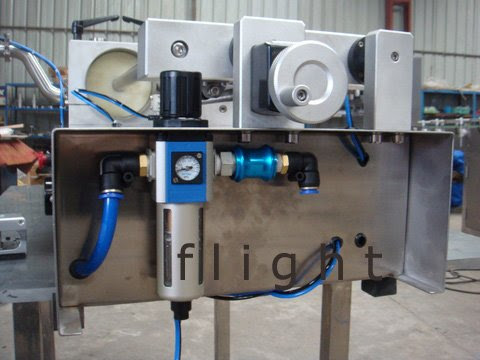

2.  This machine is controlled by compressed air, so it is suitable for using at explosion-
     Resistant and humid environment.
3.  Because of the pneumatic controls and mechanical positioning, this machine has high
     filling accuracy which is within 0.5%.
4.  Two filling modes for you to choose- “ Manual’’ and “ Auto’’.
5.  The filling volume and speed are adjusted using screws and the counter, which
     provides ease of adjustment and allows the operator to read the real-time filling volume on the
     counter.

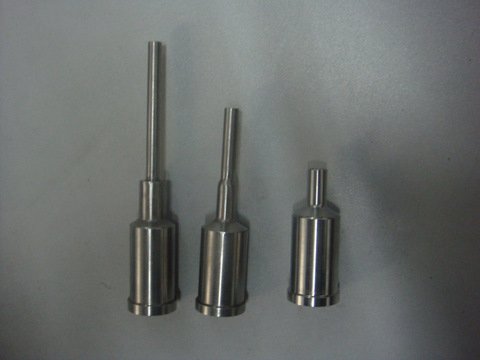

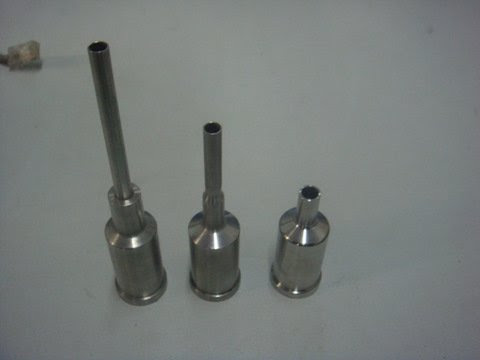

6.  The filling nozzle adopts anti-leakage, no pollution, save time and materials.
7.  The piston and throttle valves units are connected by hook-and-loop fasteners, it takes only 1
     minute to assemble and disassemble the unit without any tool, and cleaning is very easy.
8.  When you need to stop the machine in an emergency, press the URGENT button. The
     piston will go back to its initial location and the filling will be stopped immediately.
9.  We’ve developed two series of HSFA machine.TOP series(T series) and POP series
     (P series) to meet the demand of different customers.
     T series: The pneumatic components are from FESTO,Germany.
     P series: The pneumatic components are from Taiwan or Korea.
10. This machine can be appended other special device according to customers request.
      Such as: acicular filling Nozzles, feed hopper, ball valve system, lifting device etc.
11.  The proportion of equipment malfunction is extremely small.easy to clean,tool free.
Technical Parameters:

Filling speed800-1200 bottle/min
Filling accuracyWithin 0.5%
Air pressure8 kg/cm2

ModelFilling rangeair consumptionWeightOverall size
HSFA-605-60 ml23 L/min11 kg92×28×40 cm
HSFA-12010-120 ml30 L/min22 kg92×28×40 cm
HSFA-25025-250 ml44 L/min25 kg102×30×40 cm
HSFA-50050-500 ml87 L/min28 kg108×32×41 cm
HSFA-1000100-1000 ml160 L/min36 kg128×36×41 cm
HSFA-2500250-2500 ml300 L/min60 kg130×60×51 cm
HSFA-5000500-5000 ml450 L/min75 kg130×60×51 cm

Note: the air consumption are based on the filling speed of 10 pc/min. Multiply two, when
     The speed is doubled, and so on.
14.jpgDSC03789a.JPGDSC04053.JPGDSC04054.JPGFilling Nozzle.JPGPiston.JPG
.JPG
