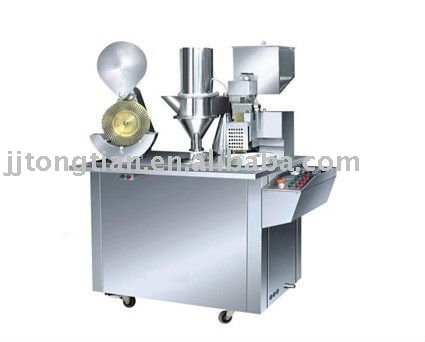

Capsule filling machine

Capsule filling machine

Quick Details
Place of Origin: Jiangsu China (Mainland) Brand Name: TONGTIAN Type: Filling Machine
Packaging Material: Metal Automatic Grade: Automatic Application: Machinery & Hardware
Driven Type: Electric
Specifications
Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance
Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.
The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump
China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 97%.
2.Specifications
1.Productivity: 1—25,000 granules/h
2.Applicable capsules:00#,0#,1#,2#,3# machine-made standard capsules
3.Filled medicine type: Not adhesive or wet powders and small granules
4.Total power: 2.12Kw
5.Air pressure: 0.03m3/min, 0.7MPa
6.Vacuum pump: evacuating rate: 40m3/h
7.External dimensions(m): 1.8×0.8×1.75   (L*W*H)
8.Weight: 330Kg
