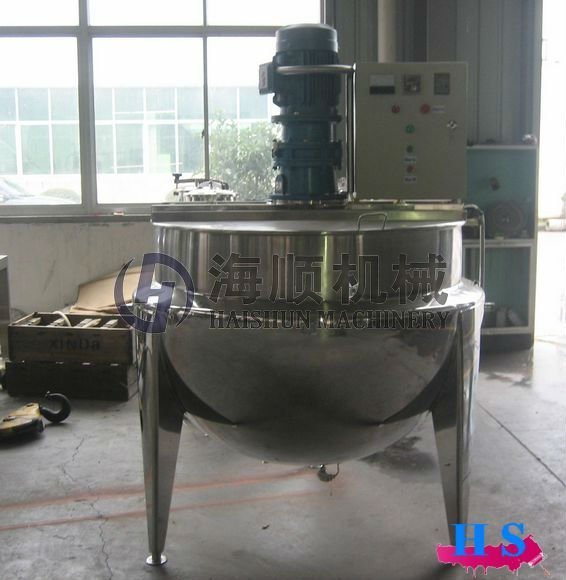

Stainless Steel Jacketed Kettles

Stainless Steel Jacketed Kettles( CE certificate)

Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: OEM Model Number: HSJK( Stainless Steel Jacketed Ke...
Type: Cooking Equipment material: ss304 volume: 900L
type: fixed type motor: ABB agitator: frame with scraper
MOQ: 1 unit speed: various speed with inverter
Specifications
Stainless Steel Jacketed Kettles
1.ss304, 900L
2.fixed type with steam heating
3.frame with scrape
Competitive price
Stainless Steel Jacketed Kettles



1.brief introducation of jacketed kettle:
This jacketed kettle is used widely for pharmacy, food and chemical industry to cook, boil or concentrator according to client requirement. It has the hot steam and electrical heating sources .Also it can add the agitator and cover .All depend on clients. stainless steel jacketed bioler consist of boiler body, stir device ,tilting system, worm wheel and worm rod and the boiler body can be rotated within 180 degree. All the materials in contact with media used stainless steel featuring good anticorrosion and durability which are in accordance with GMP standard

2. Standard Feactures:
1)900L fixed jacketed kettle with steam heating.
2)interior construction: SS304, 5MM thickness, with mirror polish, 1300mm Diameter
3)jacket construction: stainless steel 304, 5mm thickness, 1400MM diameter
4)exterior construction: stainless steel 304, 3mm thickness, 1500MM diameter, mirror polish
5)insulation: PU imported from Japan with thickness of 50MM
6)agitator: top entering anchor mixer with scraper made of teflon. ss304.
7)motor: ABB motor with good quliaty. 5.5KW, 5-60RPM with inverter to control its speed, 415V/ 3Phase/ 60HZ
8)tank design: half open hinged cover, hemisphere body
9)inlet/ outlet ports: tri-clamp connection type
10)legs: adjustable and fixed feet.
11)heating method: steam
12)accessories: control apnel. temperature probe, Cip spraying ball

3.Optional Features:
1)heating method:electric heating, gas burner
2)interior construction:ss316L
3)exterior construction: satin polish
4)insulation: rock wool for higher working temperature
5)type:tilting type with worm wheel.
6)motor: ABB, siemens, SEW
7)agitator:frame, anchor, emulsifying or paddle will be according to your requirement.
8)legs with wheel will be also available.
9)more accessories will be accepted according to your requirement.
