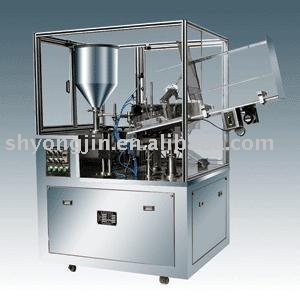

Aluminum Tube Filling Sealing machine

Aluminum Tube Filling Sealing machine


 Quick Details
Place of Origin: Hebei China (Mainland) Brand Name: Xieli Type: Filling Machine
Packaging Material: tooth paste, sauce, catch u... Automatic Grade: Automatic Application: Chemical
Condition: New Packaging Type: aluminum tubes Driven Type: Electric
Material: soft tubes Stainless steel: white
Specifications
fit for aluminum/plastic tube filling and sealing for soft tubes. eg: tooth past, eye medicine, gelly, etc.

I. Machine character
This machine is manufactured by adopting advanced technology from abroad with the GMP requirement.
It has the advantage of reasonable structure, complete function, easy operation, accurate filling volume, steady running, low noise etc. The machine can realize full atomism from liquid or high sticky paste material filling, sealing till batch printing (including production date) etc which is controlled by PLC.
1. Finger touch screen to control auto transmission, data settlement, production capacity, pressure indication, mistake status etc, to simply the operation.
2. Auto completion of the complete course such as: pipe supplying, label lining, air filling (optional), filling, sealing, printing, output etc.
3. High accuracy label lining system decreased the error range of the pipe color label.
4. The place of adjustment is of digital reveal, fast and accurate adjustment. (fit for different sizes, material production such as aluminum, plastic, other metal pipes)
5. None tube pipe auto stop filling, auto stop and auto alert at the time of protection door opening, error of pipe miss-sending, low pressure etc.
6. The same machine if fix different type of mould can be fitful for Al pipe, plastic pipe, complex pipe filling and sealing.
7. Full structure feature:
a) Semi-mono block structure so as to separate the machine with outer environment. The surface of the working room is smooth, easy to clean and dismantle mould.
b) The equipment surface is neat and smooth, the angel are round treated and well polished. All the parts which touch the material is well polished and treated, bacterial free. The full cover of the machine can be opened enabling inner maintenance. The filling tank is easy to be dismantled.
c) Working area and none-working area is sealed to prevent dust entering while operation.

II. Technical specification
Pipe materialAluminum, plastic, complex
Pipe diameterφ13-φ60mm
Pipe length60-250 (mm)
Filling volume5-400ml/pcs
Filling accuracy≤±1%
Working capacity1800-3600pcs/h
Pressure0.55-0.65 Mpa
Motor power2Kw(380V/220V 50HZ)
Hot sealing power3Kw
Outer dimension2620×1020×1980mm(L×W×H)
Machine weight1100kg

III. Spare part Origin
PartModelBrandNo.
Finger touch screenF940GOTMitsubishi Japan1
PLCFX1N-24MTMitsubishi Japan1
Auto transmissionFR-S520SE-1.5KWMitsubishi Japan1
RelayRXL4A06B2P7Schneider France3
Circuit breakerOSMC32Schneider France7
ContactorLC1-D1810Schneider France1
BottomXB2-BD21CSchneider France11
Electricity switchD-100BSoromen JV1
color label detectorLX-101Sunx Japan1
Light fiberE3X-NH11Omron1
Electric magnetic valveYSVF3130YSC Korea5
Near approachE2E-X3D1NOmron2
HeaterLEISTER3000(Switzerland 400F)1
Temperature control meterDTA-4848V1Delta (400F)1
