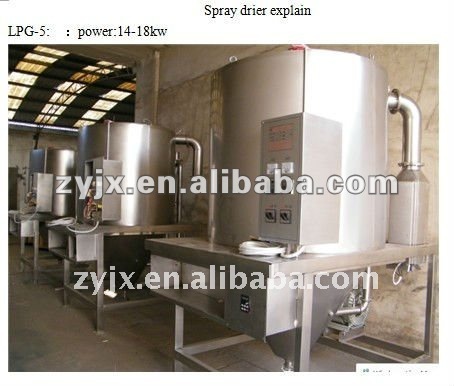

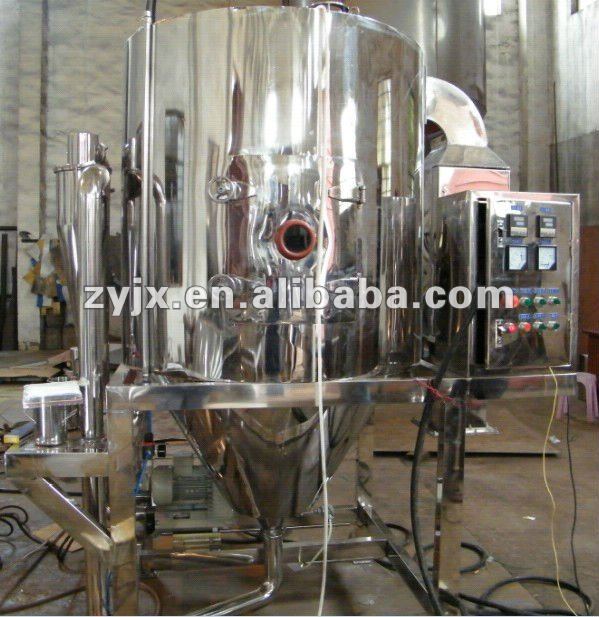

Lab Liquid Drying Machine

Lab Liquid Drying Machine

Quick Details
Place of Origin: Jiangsu China (Mainland) Brand Name: KEWEI Model Number: LPG
Application: Liquid liquid drier: Drying Machine
Specifications
Lab Liquid Drying Machine
1.one step to get powder from liquid
2.high effcient
3.GMP
4.lab usage

Applications
Spray drying is a wide applied process in liquid process shaping and drying industry. This kind of drying equipment has quick drying speed. Particularly the drying machine is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard.

Features of equipment
The surface area of material liquid through atomizing is increased greatly. In hot air stream, 95% to 98% of moisture can be evaporated at the moment. Especially suit for drying thermal sensitive material.
The product made by the machine has good uniformity, fluidity, solubility, high pure, and high quality.

The productive process is simple and the operation, control is very convenient. For liquid containing 40 - 60% of damp(for special material, may be 90%), it can be dried to powder product through drying one time. After dried, it is not necessary to crush, sieve. So it reduces productive procedure and raises the purity of product. For the size, bulk density and moisture of product can be adjusted within certain scope through exchanging operation condition.

The Main technical parameters is for reference. We also produce and design product as per customers' require
ModelLPG-5LPG-25LPG-50LPG-100LPG-150LPG(200-11000)
Inlet temp(ÂșC)52550100150200-11000
Outlet temp(ÂșC)≤350 ≤350≤350≤350≤350≤350
Max evaporation(kg/h)≤90≤90≤90≤90≤90≤90
Driving type of centrifugal sparyerdrived by compressedairmachanincal drive
Rotation speed(r.p.m)25000220002150018000180008820-15000
Dia.of spray pallet50102108108150180-340
Dimension(m)1.8*0.93*2.23*2.7*4.263.7*3.2*5.14.6*4.2*65.5*4.5*7design acording to actual conditions
Powder recollection(%)
95-99
95-99
