Friday, 29 June 2012

Two Sides Labeling Machines

two sides labeling machine


Description :

A. DIY modular assembly----Our machines are designed through a modular assembly concept, allowing for easy repair and maintenance. Our customers do not need extensive training to repair our machines, thanks to the DIY approach to construction.
B. User friendly operating system---requires no special training or advanced skills; all controls may be accessed through the touch screen with the touch of a button.
C. Powerful features to meet production needs--- can be adapted to different application needs, allowing hassle-free and easily customized production runs.
1. Built in operation manual and instructions makes training easy.
2. In case of improper operation, the machine will instruct the operator on how to use the machine properly.
3. Label size is simply input into the control system.
4. Easy and fast adjustments for perfect label position.
5. Automatic stopping at pre-set counter for simple production control.
6. Convenient synchronized speed selections.
7. Low or missing label detection on the reel to prevent mislabeling.
8. Printer speed control on the control system.
9. 30 memory slots to store labeling parameters for future use.
10. For single product conveyor lines, the machine can automatically start labeling when power is restored.
11. The microprocessor control can be upgraded to accommodate other features to meet special needs in the production line.

Specification :

 1. Voltage: 110/220 VAC, 50/60 HZ, 1 phase. 2. Power: 900 VA. 3. Controls: NETCON touch screen. 4. Converyor speed: 30 M/MIN MAX. 5. Dispensing speed: 30 M/MIN MAX. 6. Drive: stepper motor. 7. Applicator height: 150/220 mm. 8. Label size H:150 mm x L:300 mm MAX. 9. Converyor width: 110 mm. 10. Spool diameter: 46/76 mm. 11. Optional: hot foil printer.

Thursday, 28 June 2012

Horizontal Wrap Around Labelers



horizontal wrap around labeler



Description :

A. DIY modular assembly---Our machines are designed through a modular assembly concept, allowing for easy repair and maintenance. Our customers do not need extensive training to repair our machines, thanks to the DIY approach to construction.
B. User friendly operating system--requires no special training or advanced skills; all controls may be accessed through the touch screen with the touch of a button.
C. Powerful features to meet production needs-- can be adapted to different application needs, allowing hassle-free and easily customized production runs.
1. Built in operation manual and instructions makes training easy.
2. In case of improper operation, the machine will instruct the operator on how to use the machine properly.
3. Label size is simply input into the control system.
4. Easy and fast adjustments for perfect label position.
5. Automatic stopping at pre-set counter for simple production control.
6. Convenient synchronized speed selections.
7. Low or missing label detection on the reel to prevent mislabeling.
8. Printer speed control on the control system.
9. 30 memory slots to store labeling parameters for future use.
10. For single product conveyor lines, the machine can automatically start labeling when power is restored.
11. The microprocessor control can be upgraded to accommodate other features to meet special needs in the production line.


Specification :

     1. Voltage: 110/220, VAC 50/60 HZ, 1 PHASE.
     2. Power: 840 VA.
     3. Controls: NETCON touch screen.
     4. Dispensing speed: 40 M/MIN MAX.
     5. Bottle size: 10-24 mm diameter.
     6. Lable size H:150 mm x L:300 mm MAX.
     7. Conveyor width: 170 mm.
     8. Spool diameter: 46/76 mm.

     9. Accessories: hot foil printer.

Wednesday, 27 June 2012

High-speed Rotary Tabletting Machines

rotary tabletting machines

"H" series Rotary Table Presses, Modeles JC-RT-16H/JC-RT-20H / JC-RT-24H





































* Accurate tabletting.
* Compression in two stages.
* Tabletting compartment separated from drive mechanism.
* Easy maintenance & cleaning.
* Meets GMP.
* Efficient medium size production runs, with capacity upto 100,000 table per hour.
* Laboratory and pilot plant studies.

Cam Design & Lubrication
A Central lubrivation system supplies oil continuously to lower punches, while grease applied manually lubricates upper punches. The ejection cam is manufactured from special tool steel for extended life, while a doublesided lifting cam is provided.

Direct Rotation of Turret
Direct rotation of the turret by the main shaft reduces the moise level; it provide maximum protection to the gears and the deive system.

Description : Upper & Lower Punch Seals
The scrapers seals for the upper punches prtect tables from oil drip, while the dust seals on the lowers prevent the punches from binding and reduce wear on the cam. This combined with an efficient dust extraction system allows prolonged run with little downtime for cleaning.

PRE-Compression and Main Compression
High pre-compression of 3000 kgs insures trouble-free processing of difficult granules. It helps in the direct compaction of difficult granules. It helps in the direct copaction of materials, redcing lamination and capping. Pressure rollers are made of special tool steel that ensures uniform pressure application. The double bearinfs are fitted, which minimize wearing of the rollers.

Feeding Material The feeder support
Platform is preset at the factory to the correct height and should not require adjustment. Quick release clamping screws allows removal of the feeder for cleaning and tool changeover without the need to disturb the feeder plarfrom setting.

Mechanical Feeder
The two chambers feeding system has been improved further. Itis driven from top by a variable speed motor. The unit can be assembled or disassembled easily.

Cleaning and Tool Changeover
The detachable panels can be removed easily, which reveal the entire bottom punch cams, This allows easy removal of the bottom punches. Upper punch monitoring device is available that would switch off the machine in the event of punch tightness.

Specification : 1. Revolution of turret / Min (60 cyc): 18-72 RPM 2. Maximum operating pressure: 10,000kgs (22,000lb) 3. maximum pre-pressure: 3,000kgs (6,600lb) 4. Turret P.C.D: 253 mm 5. Power consumption: 3HP (2.2kw) 6. Machine dimensions: 850x790x1710mm (not including hopper) 7. Net weight: 1200 kgs (2646 Ibs)

Tuesday, 26 June 2012

Oscillating Granulator (lyk-160)

Oscillating Granulator (lyk-160)

Description:
Oscillating granulator YK-160 is used for forming the required granules from moist power material, or for crushing bulk material into granules in required size.

Main featres:

The sieve can be removed and remounted easily, its tension is also adjustable. The rotor also can be removed and cleaned conveniently. The driving mechanism is totally enclosed in the machinne body and its lubrication system, Makes the machine work smoothly.

Working process:

It is made of high quality stainless steel. And When the material is feed into the hopper, with the help of powder-reciprocating rotation, the material will go through the mesh to form the granule. It is used for forming the required granules from moist power material, or for crushing bulk material into granules in required size. It has compact structure, small shape, high efficiency, and steady running.

Type YK l60 the speed of its rotor can be adjusted during operation, its surface is painted for universal usage.

Type YKl60D, a new type is designed accordance with GMP standard, its suface is made of high quality stainles steel and looks nice. Especlly the metal and stainless steel screen mesh impoves the pellets' quality.

Parameter of YK-160
Production capacity: 400-600 kg/h,
Speed: 42-65 Round/MIN,
Motor's power: 2.2 kw 380V
Size: 930X570X1100 mm
Weight: 350kg

Sunday, 24 June 2012

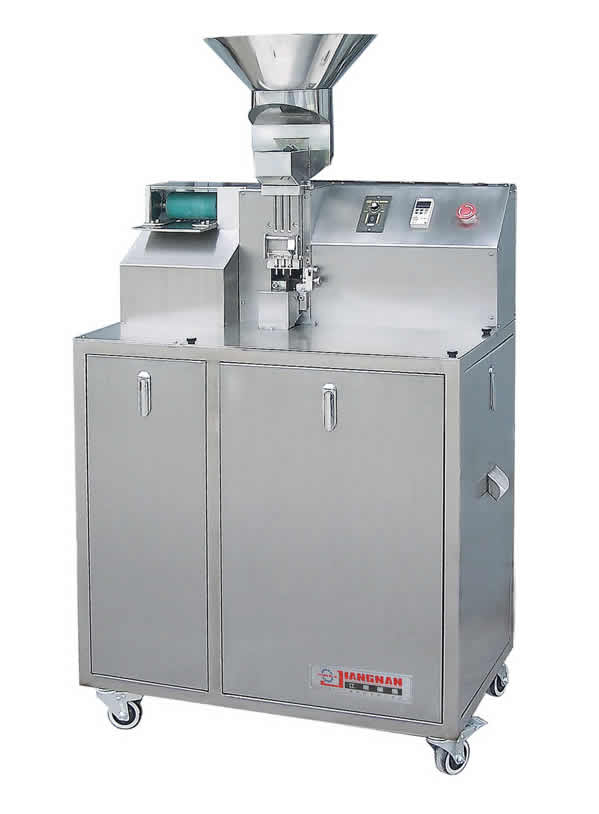

Dry Granulator


Dry Granulator

Working Principle
Our dry granulator uses the crystal water within the material to convert the powders into granules. It was listed as one of the "National Key New Products" by the Ministry of Science and Technology of the PRC in 2005.
Characteristics
1. This dry granulator requires no wetting agent such as water or ethanol in order to avoid the granule instability.
2. The whole process is simple, as it requires no wetting, kneading or drying. It is therefore of high granulating efficiency.
3. The granules made by this granulator are of high density, uniform weight and no fracture.
4. This dry granulator is made of imported stainless steel. It is small in volume and easy to clean and is in conformity with GMP standards.
Technical Parameter
ZKG-100
Max Productivity 100kg/h
Granular Specification 0.4-2mm
Roller Ф200×90
Max Push Power 21T
Power 6.4kw
Overall Dimension (L×W×H) 1400×910×2160mm
Weight 1000KG

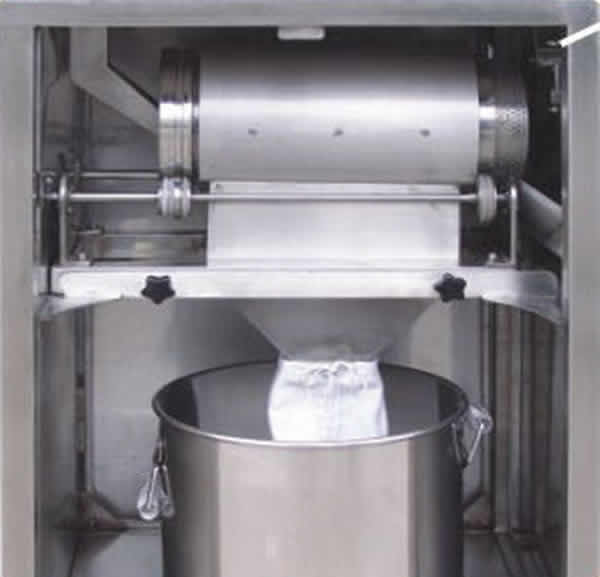

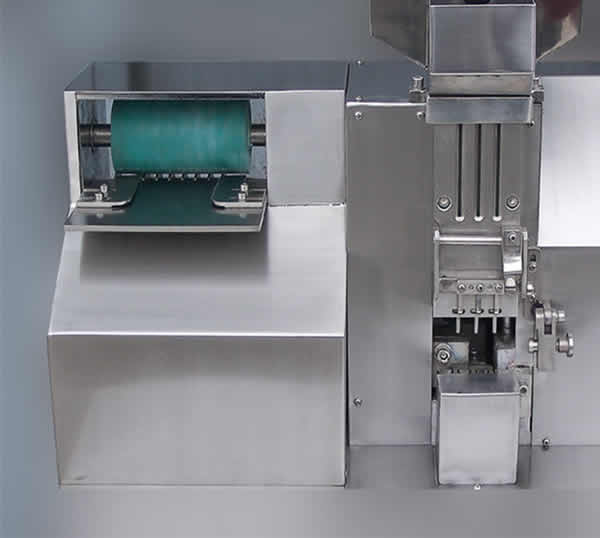

Capsule Separating Polishing Machine

Capsule Separating Polishing Machine

Introduction
Our capsule separating polishing machine comes with a polishing function as well as a separating function. It can carry out automatic separation of defective products from the qualified ones. Replacement of the mould is not necessary. This capsule separating polishing machine is applicable to all kinds of capsules.

Technical Parameters
NFJ-150
Efficiency 70000 capsules/min
Power 220V 50/60HZ
Weight 45kg
Total Power 0.18KW
Vacuum dust-intake 2.7m3/min
Compressed Air 30pa
Overall Dimension 900×600×1100mm(L×W×H)


Saturday, 23 June 2012

Vertical Packer Machine

Vertical Packer Machine

MAIN STANDARD FEATURES

1.High value at low cost

2. screen interface, easy to use and operate

3.PLC controller, ensures ease of operation

4. temperature control.

5.Servomotor is loaded for Single film pulling belt

6.Date printer is automatically set

7 sensor (Photo eye) for registration film

8.Quickly format changes, no tools required

9.All the contact are made from stainless steel



Model:BLD400

Packing Speed:25-60bags/min

Bag Size:70-200mm(W), 100-300mm(L)

Air Consumption:0.25m3(Normal)/min, 0.6Mpa

Film Roll Outer:Outer:Ï


Friday, 22 June 2012

Medicine Bottle Making Machine


Medicine Bottle Making Machine

























Brief Description

Medicine bottle making machine is
(1) Higher speed
(2) Higher precision
(3) Lower energy consumption

Product Attributes

Related attributes of Medicine Bottle Making Machine:
  • Place of Origin:China (Mainland)
  • Brand Name:SENVO
  • Model Number:DS320
  • Automatic:Yes
  • Style:Horizontal
  • Plastic Type:Thermoplastic
  • Injection Weight:1200g
  • Injection Rate:95
  • Clamping Force:3200KN
  • Opening Stroke:580mm

Detailed Description

Detailed introduction to Medicine Bottle Making Machine:
The specification of our medicine bottle making machine is as follows:
DS320 Technical Specifications
1.         Shot volume  988/ 1346/1758  cm³
2.         Shot weight    928/32.8        1266/44.7 1652/58.4  g/oz
3.         Screw diameter      60/70/80 mm
4.         Injection pressure   225/ 165  /126 mpa
5.         Screw I/D ratio      25:1     21:1     18.5:1
6.         Screw stroke         350  mm
7.         Screw speed(stepless)      0-150  rpm
8.         Clamping force      3200  kn
9.         Opening stroke       580  mm
10.     Platen size      950 x 950  mm x mm
11.     Space between tie bars   670 x 670      mm x mm
12.     Max daylight   1235      mm x mm
13.     Mold thickness(min-max) 220-655 mm
14.     Hydraulic ejection stroke       180 mm
15.     Hydraulic ejection force 77 kn
16.     Ejector pin      8+1
17.     Hydraulic system pressure     17.5  mpa
18.     Pump motor          30 kw
19.     Heating capacity     18.3 kw
20.     Number of temp control zones             6
21.     Oil tank capacity    650  L
22.     Machine dimensions      6.56 x 1.41 x 2.25 m x m x m
23.     Machine weight      13000 kg
1. Energy Saving Adopting Japanese YUKEN servo oil pump system; comparing to the conventional hydraulic system, it can reduce the power and water consumption by as much as 80%. The power efficiency of the machine can be further enhanced by using geomagnetic heating ring.
2. Ultimate Precision Repeatability The precision repeatability of 0.5% can be maintained even when operating speed is dead low or under prolonged dwell time.
 3. Ultimate Response SVP has a response speed as twice fast as that of the conventional variable pump. In processing the products requiring fast response, it can offer more satisfaction to customers.
4. Long Operation life Effectively slowing down the temperature rise in oil and prolonging the oil change interval and the operation life of hydraulic parts as well.


Thursday, 21 June 2012

Auto Open Capsule Taking Powder Machine (Shell Board)







Characteristics
1. Our auto open capsule taking powder machine (shell board) is of stainless steel.
2. It is provided with a convenient washing device that allows complete cleanout to be done within a few minutes.
3. It can recycle medicament for 00# - 4# capsules.
4. This auto open capsule taking powder machine (shell board) can greatly increase working efficiency, reduce labor cost, and increase utility.
5. The shelling board and capsule opening functions could be carried out separately. The capsules can initially be pressed then discharged. Both the medicine powders and empty capsules can be automatically stored.
Technical Parameters
Output 0.38Kw
Power 220V 50HZ 1A
Production 100-300 pills/min
Efficiency 66 plates/min
Weight 130KG
Overall dimension 750×480×1500mm

Wednesday, 20 June 2012

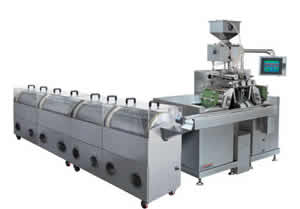

Softgel Encapsulation Machine

Softgel Encapsulation Machine

Application
Softgel encapsulation is easy to swallow, store and carry. It also has the features of fast disintegration, nice appearance, and better dissolution. It is therefore increasingly preferred by more and more people. Our softgel encapsulation machine is capable of injecting a certain amount of oily liquid, suspension and pasty mass into capsules to form soft gel tablets of different sizes, shapes and colors. It is characterized by high productivity, precise injection, stable performance and high yield. It is now widely used in the manufacture of medicines, health care products, cosmetics, paintballs and many more products. Supported by two technology patents of, our softgel encapsulation machine is provincially approved and CE certified.
Characteristics
1.soft gel encapsulation machine is of high productivity. It could produce 300 million pills each year (Tested on the No.8 oval shape, 24 hours / day, 300 days/year).
2. It adopts an advanced linear driving system at the injecting part to ensure a filling deviation rate within 2%.
3.  softgel encapsulation machine is also equipped with a water cooling system to avoid air pollution.
4. Fine oil supplying technology is used to lubricate the gelatin. This greatly minimizes the consumption rate of the lubricating oil.
5. It employs FDA authorized food conveyer as the capsule delivery system. It is clean, non-adhesive and easy to maintain.
6. Its mould is made of aviation alloy material which has a surface that is specially processed to increase its durability.
7. It employs an automatic feeding system for the supply of capsules and material.
8. It has a precise and convenient dial gauge to help indicate the capsule thickness.
9. This softgel encapsulation machine uses a high voltage power supply to avoid insufficient driving power in cases where the material is of a thick density.
10. All the parts that are exposed to the medicine or gelatin are made of harmless materials. These materials will not fall off or contaminate the medicine.
Main Technical Parameter
RJWJ-115 RJWJ-185 RJWJ-200 RJWJ-250
Rotary Speed of Die Roll 0-4rpm Stepless Frequency Conversion 0-5rpm Stepless Frequency Conversion 0-5rpm Stepless Frequency Conversion 0-5rpm Stepless Frequency Conversion
Supplying Volume for Flow
Single-pillar Pistol
0-1ml 0-2ml 0-2ml 0-2ml
Filling Volume Tolerance ±2% ±2% ±2% ±2%
Power 4KW 6.5KW 7.5KW 16.5KW
Pillar Quantity 8 12 12 20
Overall Dimension 600×850×1650mm 790×920×2100mm 1500×1150×2000mm 2300×1275×2400mm
Weight 650Kg 980Kg 1050Kg 2800Kg

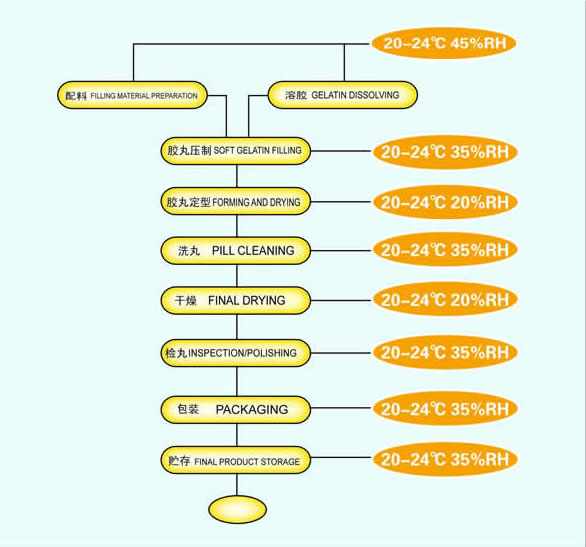

Workflow of Soft Gelatin Capsule

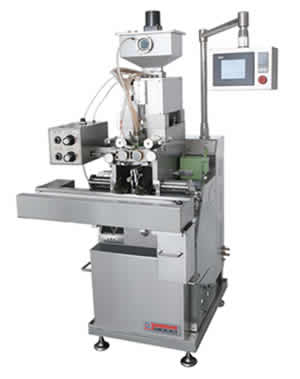

RJWJ-115
RJWJ-115

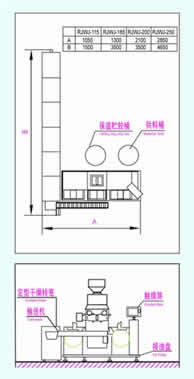

Main Technical Parameter
RJWJ-115 RJWJ-185 RJWJ-200 RJWJ-250
A 1050 1300 2100 2850
B 1500 3500 3500 4650
Dosage Tank
Dosage Tank
Application
It is used to prepare mixed gelatin for the encapsulation process of the softgel encapsulation machine.
Characteristics
1. It comes with three stainless steel inter layers, which help to accurately control the temperature of liquid medicine.
2. It is equipped with a specially-made paddle to ensure quick agitating and mixing
3. It carries out smooth discharging and is easy to install and maintain.
Main Technical Parameter
PL-250 PL-450 PL-600
Effective capacity of inner tank 250L 450L 600L
Effective capacity of inter layer 65L 95L 120L
Working temperature Room Temperature -100℃ Room Temperature -100℃ Room Temperature -100℃
Power of stirring motor 0.55KW 1.1KW 1.1KW
Mixing speed 60rpm 60rpm 60rpm
Pressure -0.09~0.1Mpa -0.09~0.1Mpa -0.09~0.1Mpa
Overall dimension Φ806×2400mm Φ1006×2450mm Φ1208×2550mm
Weight 350kg 750kg 1000kg
Gelatin-melt Tank
Gelatin-melt Tank


Gelatin-melt Tank
Application
It is used to prepare mixed gelatin to be used in the softgel encapsulation machine.
Characteristics
1. It has three inter layers of stainless steel, which help to safely speed up the heating process while consuming low energy.
2. It has a large capacity, strong mixing power and large output.
3. It carries out smooth discharging and is easy to install and maintain.
Main Technical Parameter
RJ-250 RJ-600 RJ-900
Effective capacity of inner tank 250L 600L 900L
Effective capacity of inter layer 65L 120L 170L
Working temperature Room Temperature -100℃ Room Temperature -100℃ Room Temperature -100℃
Power of stirring motor 1.1KW 2.2KW 3KW
Mixing speed 35rpm 40rpm 32rpm
Pressure -0.09~0.1Mpa -0.09~0.1Mpa -0.09~0.1Mpa
Overall dimension Φ806×2400mm Φ1208×2450mm Φ1408×2550mm
Weight 350kg 1000kg 1250kg
Tumble Dryer
Tumble Dryer
Application
This tumble dryer is used to dry pressed capsule pills released from the main softgel encapsulation machine.
Characteristics
1. Our tumble dryer is made of stainless steel, with 4 sections in each line. Each section is provided with an independent driving system, which helps carry out both clockwise and anticlockwise drying at will.
2. It does not require any lubrication, avoiding any contamination that may be caused by lubricants. This also makes the softgel encapsulation machine easy to maintain.
3. The inner wall of this tumble dryer is polished to avoid sharp corners. This helps to increase the qualification rate.
4. It is fitted with a high power fan to eliminate the moisture present in the capsule shells.
5. The whole machine is conveniently designed for easier maintenance, installation, and operation. You can dismantle any part of the machine easily without affecting the regular operation of the whole softgel encapsulation machine.
Main Technical Parameter
DGZL-400 DGZL-470
Size ф400 X 640mm Ф470 X 720mm
Rotate speed 8rpm 8rpm
Power 0.37 Kw 0.37 Kw
Speed of motor 1450rpm 1450rpm
Fan delivery 2 X 1000m3/h 4 X2500 m3/h
Effective capacity 40L 70L
Loading capacity 55Kg 100Kg
Pill quantity 55000 pills(8 OV) 100000 pills(8 OV)
Overall dimension 1250 X 510 X 850 mm 3300 X 580 X 1130 mm
Weight 105Kg 400Kg
Different Capsules
Softgel Moulds
Gelatine recycle machine
Gelatine recycle machine
Heat-insulated gelatin preservation tank
Heat-insulated gelatin preservation tank
Colloidal mill
Colloidal mill
Output of Roll moulds
Shape Model RJWJ – 115 RJWJ – 185 RJWJ – 200 RJWJ – 250
Number of cavities Output at medium speed (pill/hour) Number of cavities Output at medium speed (pill/hour) Number of cavities Output at medium speed (pill/hour) Number of cavities Output at medium speed (pill/hour)
Oval 4 114 17100 260 46800 286 51480 714 85680
8 85 12750 207 37200 230 41400 585 70200
20 52 7800 120 21600 140 25200 334 40080
Oblong 4 86 12900 217 39060 236 41400 554 66480
8 64 9600 182 32760 206 37080 468 56160
20 48 7200 115 20700 138 24840 315 37800
Round 8 83 12450 210 37800 231 41580 590 70800



Tuesday, 19 June 2012

High Efficiency Boiling Drier

http://www.blisterpackmachine.com/5Powder_Processing/3-1.jpg

High Efficiency Boiling Drier has quick drying speed and uniform temperature. In general, the drying time of each batch is about 20-30 minutes. There is stirring device in the container, avoiding the joining of wet materials and the forming of agglomeration during the drying course, which can make the materials dry evenly and swiftly.
The characteristics of High Efficiency Boiling Drier:
1. High Efficiency Boiling Drier adopts gasbag-style airtight in its material container.
2. The fluid-bed is round structure, so it can avoid dead corner.
3. The cloth bag filter at top is made from special anti-static fiber. The operation is safe.
4. High Efficiency Boiling Drier is operated at sealed negative pressure and designed by GMP normal.
The application of High Efficiency Boiling Drier:
High Efficiency Boiling Drier is suitable for drying damp granule or powder material in many fields, such as pharmaceutical industry, chemical industry, feed stuff industry, light industry to name a few. It is applicable to drying big granule, small mass, viscosity, black material produced by HLSG damp method mixer gratulatory, giant arum, acrylic acid amide, etc. Those materials have big volume change.
Main technical parameters of High Efficiency Boiling Drier:
Model\Item GFG60 GFG120 GFG150 GFG200 GFG300 GFG500
Volume(L) 200 400 500 650 1000 1500
Capacity(Kg) 60 120 150 200 300 500
Power of Fan (Kw) 7.5 11 15 22 30 37
Power of Stirring(Kw) 0.55 1.1 1.1 1.1 1.1 1.5
Speed of Stirring(r/min) 11 11 11 11 11 11
Steam Consumption(Kg/h) 140 170 240 282 366 460
Steam Pressure(mpa) 0.4 0.4 0.4 0.4 0.4 0.4
Compressed Air Pressure 0.5 0.5 0.5 0.5 0.5 0.5
Compressed Air Consumption 0.6 0.6 0.9 0.9 1.2 1.2
Dimensions Of Min Machine 2750×1160
×1420mm
3070×1520
×1520mm
3320×1520
×1820mm
3200×1750
×3100mm
3300×1800×3100mm 3500×1850×3200mm
Weight Of Main Machine(kg) 1000 1450 1500 1700 1800 1900

Monday, 18 June 2012

EYH Series 2D Movement Mixing Machine

EYH Series 2D Movement Mixing Machine


Product Description The mixing tank is a cylinder-shaped barrel without any stirring device inside, which makes the self-rotation around its axis and also produces reversible swing movement around its horizontal axis at the same time. Therefore, the target materials inside the barrel could be mixed diffusely and movably. It is featured with short mixing time, good uniformity, big output, convenient to discharging, etc. It is great for prompt, even and vast mixing.

Model

Barrel volume(L)

Loading volume(L)

Max loading weigh(kg)


No of swing& rotation

Total motor power(kw)

Overall dimensions (L× W× H))(mm)


Barrel weigh(kg)

Weigh(kg)

EYH-60

60

30

20

50

0.8

700× 730× 1100

15

115

EYH-150

150

75

50

37

1.65

800× 1050× 1450

50

190

EYH-300

300

150

100

30

2.95

900× 1350× 1550

60

340

EYH-600

600

300

200

23.6

4.4

1170× 1640× 2050

140

1150

EYH-800

800

400

280

19.8

4.4

1320× 1950× 2150

200

1600

EYH-1000

1000

500

350

19.8

5.2

1360× 2040× 2300

240

1700

EYH-1500

1500

750

520

16.2

5.2

1580× 2400× 2550

320

2000

EYH-2000

2000

1000

700

16.2

7

1740× 2600× 2770

430

2600

EYH-3000

3000

1500

1050

13.8

9

1800× 2900× 3800

620

3500

EYH-4000

4000

2000

1400

12.8

13

1970× 3300× 3300

700

4100

EYH-6000

6000

3000

2100

11.2

18.5

2300× 2900× 3800

1100

6100

EYH-8000

8000

4000

2800

10.4

22.5

2540× 4100× 4050

1450

7900

EYH-1000

10000

5000

3500

9

33

2900× 4500× 4400

1650

9500


Tuesday, 12 June 2012

Herbal Medicine Extract Atomizing\Spray Dryer


Detailed Product Description
Productivity:  200set/Year
Unit Price/Payment:  USD 5000~500000
HS Code:  8419399090
Trademark:  Yigan
Origin:  China
Min. Order:  1set
Structure:  Spraying Drier
Movement Way:  Spraying
Heating Mode:  Convective
Operational Method:  Continuous
Operation Pressure:  Atmospheric Dryer


Export Markets:  North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Herbal Medicine Extract Atomizing Dryer\Spray Dryer
The machine adapts full seal from. It is equipped with three grades of purifying apparatus. The filtered air reaches the requirement of one hundred thousand-level, The cooling appetites of wall is installed in the cylinder body and top, which makes the wall temperature less than 80 C. So, this kind of dryer is suitable for material with high content of sugar
Moreover, the phenomenon of carbonization and degeneration will not happen. Material receiving rate is raised greatly. Moreover it can not produce the phenomenon of medicine mixing and wall staying.
Basic principle
This equipment is an application of centrifuge atomizing technique for special raw material. It is an apparatus using high-speed centrifuge atomizer to make raw material distribute in fog that contacts with hot air fully and finish the dry momentarily and form powder finished product.
The special drier for immersed ointment of traditional Chinese medicine is used to solve immersed ointment of traditional Chinese medicine and extracted liquid of plant. It selves the conditions existed in original LPG high-speed atomizing dryer. In view of this, according to the properties and process requirements of immersed ointment of traditional Chinese medicine, our factory researched and designed the special drier for immersed ointment of traditional Chinese medicine and won two items of China patent.
Features
1. Being adapted three grade air purification, the inlet air reaches the requirement of one hundred thousand grade;
2. Being adapted wall cooling device, the temperature of inner wall will be 80~C, Even if raw material is stayed on the wall, it can not carbonize;
3. Its whole volume is 3.5 times of standard LPG high- speed atomizing dryer;
4. Being adapted quick washing device, it is can meet the requirements of production for variety products;
5, Being adapted quick washing device, there is no powder dust out, It is conformity with the requirement of GMP;
6. Being adapted air sweeping device, the clean effect is satisfied;
7. Equipped two sets of atomizer and adapted frequency control;
8. Adapted PLC control and display and adapted frequency control;
9. Equipped with washing device;
10. Adapt the seal method to transport dry air.


Tuesday, 5 June 2012

De-Burring & De-Dusting-Vibro Type




De-Burring and De-Dustin Type Machine
APPLICATION

Tablet De-Burring & De- Dusting machine is used to remove burrs-Dust from the Tablets. Machine can perform in line with the tablet compression machine.
THE MACHINE IS HAVING FOLLOWING MAJOR SALIENT FEATURES-
    •  Tablet conveying route is so geometrically designed for impingement of tablets on their burrs, which can break easily.
    •   Noiseless & Maintenance free unit.
    •  Electric power requirement less than other machines for same  application.
    •  Height adjustment facility provided with the unit to suit with any  Rotary Tableting Machine.
    •  All contact parts made of stainless steel and components can be easily washed and/or sterilized.
    •  Efficient De-Burring & De-Dusting and full suction output is concentrated on De-Dusting zone for flushing out powder.

Out Put
350000 Tablets/ Hour
Max. Tablet Dia.
40 mm
Min. Tablet Dia.
3 mm
Power
0.25 Hp / 3 Phase
Hight Adjustment
Min. 800 mm & Max. 930 mm.
Over All Dimenssions (Apprx.)
400 X 400 X 800 to 930 mm.

Monday, 4 June 2012

Servo Blister Packing Machine DPB-140C


Servo Blister Packing Machine

The servo blister packing machine is a new and especially designed for middle and small pharmacy factories, hospital dosage rooms and health care factories. The servo blister packing machine uses PLC Human Interface and has many features, including frequency control, high automation, easy operation, all-round functions, advanced technology, stable running, and durable life. .In accordance with GMP standard, it is an ideal blister packing machine for AL-plastic and paper-plastic packing. The servo blister packing machine has passed the Provincial Science and Technology Appraisal.
Features
1. The main transmission part of the servo blister packing machine uses a swinging pin gear reducer which has long life, low noise and stable running.
2. With adjustable stroke, the servo blister packing machine is easy to operate and can be used for different sizes packaging, especially for packing small batch but various kinds of products.
3. With plate structure, the servo blister packing machine can pack special shapes, such as oval, square and triangle, etc.
4. The servo blister packing machine uses photoelectric color code checking and a servo motor to track and pull. The servo blister packing machine offers good performance.
Technical Specifications
Cutting Frequency (times/min) 6-35
Capacity (10 thousand pcs/h) 2-11
Max. Forming area and Depth (mm) 140×110×14
Stroke (mm) 40-120 can be manufactured as user's requirements
Standard Plate(mm) 80×57 can be manufactured as user's requirements
Air Pressure (Mpa) 0.4-0.6
Air Supply ≥0.2 m³/min
Total Power 380V/220V 50Hz 4.3kw
Main Motor Power (kw) 1.1
PVC Hard Pieces (mm) 0.15-0.5×140
PTP Aluminum Foil (mm) 0.02-0.035×140
Dialysis Paper (mm) 50-100g×140
Mold Cooling Tap water or recycling water
Overall Dimensions (mm) 2300×560×1410(L×W×H)
Weight (kg) 600

Sunday, 3 June 2012

Desiccant Squeeze Machine


Desiccant Squeeze Machine

Desiccant Squeeze Machine
This desiccant squeeze machine is specially designed for squeezing desiccant during the packing of aluminum-plastic drug plates. It cuts the coiled desiccant bags with color patch or without color patch and have they packed in pillow type when they drop onto the drug plates. This desiccant squeeze machine is qualified for GMP standards.
Features of Desiccant Squeeze Machine
1. Ths desiccant squeeze machine is of high intellectualize for its electrical, mechanical and optical systems. It is of mechanical and photo electrical double-connection sensing technology. It requires no color patch and has desiccant bag changing, self-diagnosis, alarm and other functions. Therefore, it can work continuously and precisely and cause no wastage of the materials.
2. It is controlled by PLC programmable controller.
3. Its TD-200 screen displays the parameters. This makes it really easy for an operator to make adjustments to the machine.
4. With compact structure and small volume, this machine occupies small space and thus has reduced costs.
5. Stable and durable, this packing machine does not need to change the accessories frequently.
6. It can run fully-automatically, requiring no special personnel to operate the machine.
7. This desiccant squeeze machine is of high squeezing speed and is therefore suitable for factories with high production capacity.
Parameters of Desiccant Squeeze Machine
Size of desiccant bag Width: 20-40mm coiled strip-type desiccant bags
Production capacity 30-80bags/min, 13000-33000 bags/7 hours
Rated frequency 50Hz
Rated voltage AC220V
Power 0.25KW
Overall dimension L×W×H 685×900×1850mm


Friday, 1 June 2012

Nano Spray Dryer B-90



Small ml quantities
  • The Nano Spray Dryer B-90 is the ideal laboratory instrument for processing the smallest quantities, typically used in feasibility studies. Spray drying of valuable substances within the submicron range is possible.
  • Main fields for the innovative spray dryer are found in pharmaceutical, biotech, material- and nanotechnology applications.
Submicron particles
  • The innovative piezo crystal driven spray head generates a mist of fine droplets with very narrow size distribution. Different spray caps with 4.0, 5.5 and 7.0 μm hole sizes are available to tune the average droplet size between 8 to 21 μm precisely.
  • Nanoparticle suspensions and nanoemulsions are typical applications for the Nano Spray Dryer B-90.
High yields up to 90%
  • The unique electrostatic particle collector offers excellent particle separation efficiency for submicron- and nanoparticles of milligram sample amounts.
  • This ensures the recovery of high value and expensive materials in R&D studies and feasibility tests. This unique technology is ideal for samples used in pharmaceuticals, medical products, advanced materials and innovative food ingredient industries.

  • Processing of sample amounts <100 mg
  • Droplet size in the range of 8 to 21 µm
  • Smallest dried particles of 0.3 to 5 µm with very narrow size distribution
  • Electrical particle collector with 99% separation efficience
  • High product yields up to 90%
  • Spray drying of minimal ml-quantities

Principle


  • The drying gas enters laminarly from the top into the drying chamber and is heated up to the set inlet temperature
  • The piezodriven spray nozzle generates ultra-fine droplets, which are gently dried to solid particles
  • The dried solid particles are electrostatically charged and collected at the collecting electrode
  • The drying gas exits the spray dryer, the outlet temperature is measured, in addition, the gas is filtered
The Nano Spray Dryer B-90 offers a fast drying process for temperature sensitive materials, excellent product yields and low energy consumption.

Spray generation




  • The droplet generation is based on a piezoelectric driven actuator, vibrating a thin, perforated, stainless steel membrane (mesh) in a small spray cap
  • The membrane features an array of precise micron-sized holes.

  • The actuator is driven at an ultrasonic frequency, causing the membrane to vibrate, ejecting millions of precisely sized droplets every second with very narrow droplet size distribution

Spray head based on piezotechnology



Spray head with piezotechnology




Spray caps with perforated meshes
(4.0, 5.5 and 7.0 μm hole size)
Novel piezoelectric driven droplet atomizing technology
  • Ultrasonic atomazation at 60 kHz driving frequency for gentle and soft droplet generation
  • Choice of three different spray caps with 4.0, 5.5 and 7.0 μm mesh hole size
  • Very narrow droplet size distribution
  • Simple exchange of spray caps
  • Easy cleaning of spray head with detergents or in an ultrasonic bath



Heating system (patent pending)


  • Compact porous metal foam for optimal heating energy input
  • Short heat-up times up to 120 °C
  • Generation of laminar gas flow in the drying section
  • Connvective heat transfer between droplets and gas
  • Fast heating control by pluggalbe PT-1000 temperature sensor

Innovative electrical particle collector for highest yield


Innovative electrostatic particle collector for submicron- and nanoparticles
  • Particle separation rate is independent of particle mass (as in cyclones) and allows collection of fine nanoparticles (separation efficiency >99%)
  • Excellent product yields up to 90 % for small sample quantities <100 mg
  • Simple particle collection with manual particle scraper
  • Integrated outlet gas filter for user and environment protection

Easy operation and PC-software for online data monitoring and storage


Easy operation and instrument control
  • Visualized process parameters and simple display control
  • Convenient setting of inlet/outlet temperature, drying gas flow, spray rate and pressure on the front panel
PC-software for online data monitoring and storage
  • Data storage of experimental runs in a library

  • Documentation of process data of experimental runs
  • Export of process parameters for further data analyis (eg. to MS Excel)

Height adjustable pump


  • Sample  feeding  with  pluggable  peristaltic pump
  • Continous recirculation of the sample, from  sample  vessel  to  spray  head and back
  • Minimal dead volume in the feeding tubes

Modular glass assembly of the spray cylinder



Modular glass assembly of the spray cylinder
  • Visibility of the complete spray process from droplet generation to particle collection
  • Use the short instrument for ultra-fine droplet production and the tall unit for larger droplets and water based samples
  • Angular spray head installation for heat sensitive materials and small sample amounts down to 1 ml
  • Simple and ergonomic installation of modular glassware
  • This table-top instrument is easy to clean and sterilize



Open mode for aqueous samples and not oxygen sensitive materials



Drying with air for aqueous solutions with < 20 % organic solvents. The Dehumidifier B-296 is used for reproducible conditioning of the inlet drying air humidity.



Compressed air is used as a standard drying gas. The air maintenance unit is additionally recommended to assure oil free and particle free gas.

Closed mode for organic solvents and oxygen sensitive materials



Safe drying of pure organic solvents with automatic control of the O2 concentration in the circuit below 4 %. N2 and CO2 are used to control the efficiency of the electrical particle collector.



Drying of oxygen sensitive substances or flammable powders under N2 and CO2 atmosphere. The B-296 in a closed loop enables the safe use of water-organic solvent mixtures with up to 50 % solvent.


Technical data of the Nano Spray Dryer B-90

Power consumption max. 1500 W
Connection voltage 100 – 240 V ± 10 %
Frequency 50/60 Hz
Heating capacity max 1400 W
Heating control ± 1 °C
Max. inlet temperature 120 °C
Evaporating capacity max. 0.2 l/h H2O, higher rates for organic solvents are possible
Drying gas flow 80 –160 l/min
Spray caps (Hole diameters) 4.0 μm, 5.5 μm, 7.0 μm
Mean droplet size range 8 – 21 μm
Mean particle size range 300 nm – 5 μm
Mean residence time 1 - 4 sec
Interface USB II
Degree of Protection IP 42
Pollution degree 2
Environmental conditions for indoor use only
Temperature 5 – 40 °C
Altitude up to 2000 m
Humidity max. relative humidity 80% for temperatures up to 31 °C, and then linearly decreasing to 50% at 40 °C
Dimensions ( W x H x D) 58 x 110 x 55 cm (short set-up) / 58 x 150 x 55 cm (tall set-up)
Weight 65 kg (short set-up) / 70 kg (tall set-up)
