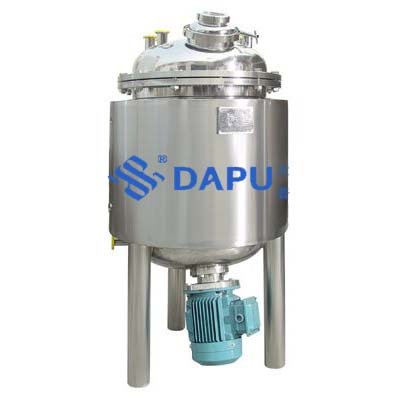

Magnetic material mixing tank

Magnetic material mixing tank
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: DAPU Application: Liquid
Stainless steel: mixing machine Type: Mixing Machine

1.mixing tank
2.made of stianless steel and meet GMP
3.high quality and low price
4.prompt delivery

1- With Magnetic stirring at the bottom, the power transmitted as magnetic type between motor and blades, so that the entire tank in a completely closed, in full compliance with the GMP requirements for pharmaceutical production.
2- Adopts with magnetic drive, frequency control, therefore, the frictional resistance to prevent loss and starting torque consumption, energy-saving.
Inner formation: Vertical circular barrel (inner barrel touched with medicine liquid)
Inner material: SUS316L (imported from Japan)
Thickness: Manufactured as the requirements of pressure-bearing vessel
Inner smooth finish: 0.28-0.4 μm
Outer material: SUS304
Heating coil: SUS304
Heat preservation material: ≤5 per day
Sterilization pressure: 0.15-0.3Mpa
Sterilization temperature: 121-132
Working temperature: 60-100
Working pressure: Normal pressure
