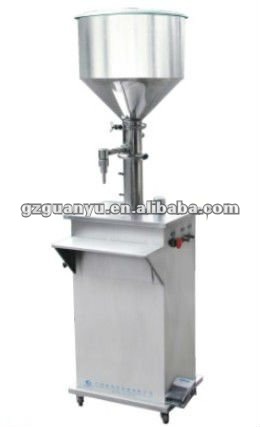

Thick paste filling machine

thick paste filling machine

Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: Guanyu Model Number: GY-VG
Type: Filling Machine Packaging Material: Plastic Automatic Grade: Semi-Automatic
Power: 0 Application: Beverage Condition: New
Packaging Type: Bottles Driven Type: Pneumatic Material: Stainless steel
Machine,can fill medicine, pesticides, food, cream, paste, liquid soap, commodity, cosmetics, chemical.
1. Description
function and feature
1apply tomedicine, pesticides, food, cream, paste, liquid soap, commodity, cosmetics, chemical and so on
2materials requiredIt can be adapted to a certain range of viscosity and hardness of materials less than or equal to 30000cps
3Filing volume range15-150ml, 30-300ml, 50-500ml, 100-1000ml, 200-2000ml, 250-2500ml
4Materialthe parts which material contact with by SS316, SS304 stainless steel for the machine body
5ControlPneumatic, 4-6kg of the air pressure to supply. Not need electric.
6HopperStainless steel 304 or 316, SS 316 material will be higher price than SS 304, it also can without the hopper, directly connect a pipe to storage tank to suck out material with for filling into bottles.
7cylinderAIRTAC, JELPC
8FunctionAutomatic fillingIt can set the gap time for filling.
semi-automatic fillingit can control the foot switch for filling
9foot switchIt can press by feet for filling
10bottle perfect positionIt can add bottle perfect position which according to customer needs. (bottle perfect position of the price other calculate)
Simple packing or wooden case,
packing size: 400*300*1100mm
One year
Spare parts
We will provide some spare part of easy damaged for changing along with machine, beyond guarantee period, we shall supply the spare part at factory cost price. The related DHL fees will be responsible to the buyer.
After-sale service
Before the machine leave ours factory, we will check well the quality, freely teach customer how to run the machine, if customer in oversea, we can teach it by video or take pictures, we will give customer a manual operation book. This machine is so simple and easy to operate; normally short time customer will know it.
2. Technical parameter
Air Pressure0.4-0.6Mpa
operating pressure0.1-0.5mpa
production capacity10-40 (bottles/min)
air consumption0.3 cube per min
Filling Accuracy0.01
Contour dimensions620*520*1510mm
filling range15-125ml,30-300ml, 50-500ml, 100-1000 ml, 200-2000ml, 250-2500ml
